Quick Joint Inclinometer Casing

InfrastructureGeotechnical Instrumentation

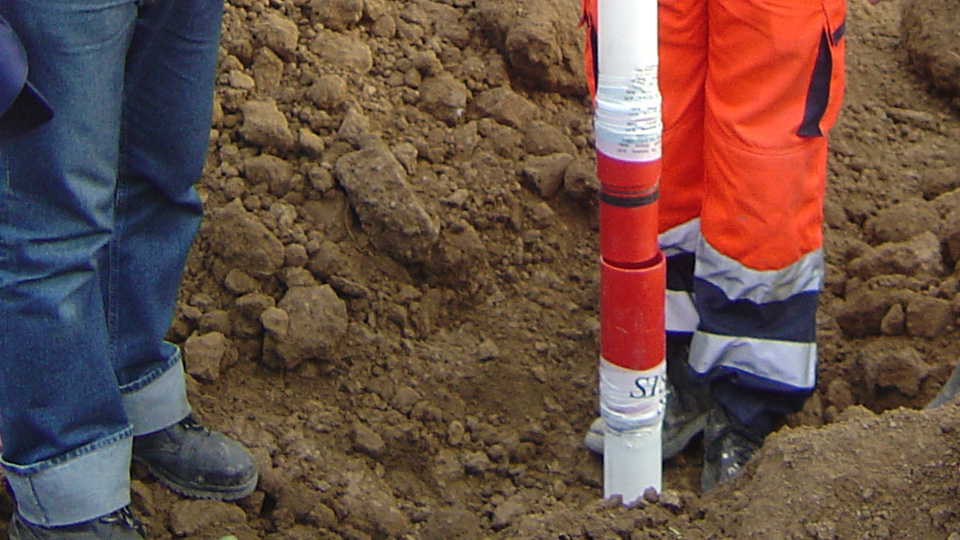

The Quick Joint inclinometer casing is an alternative to the traditional inclinometer tubes, mainly designed for earth-fill and rock-fill dams, and deep borehole applications. Quick Joint tube offers simple and fast installation, consistent joint and deeper tube grooves. O-rings prevent ingress of grout or water. The fitted-at-factory coupling and the alignment keys assure a perfect grooves continuity. Telescopic section and a variety of settlement rings for either borehole and embankment installations permit to combine inclinometer and settlement measurements in one borehole. More info.↗

Quantity

Specification

Model	Standard Quick Joint section and Quick Joint Telescopic section 75 mm gap (3’’)
Tube outer diameter	70 mm (2.75’’)
Tube inner diameter	59 mm (2.32’’)
Tube groove ID	63 mm
Overall section length	3100 mm
Overall diameter	84 mm
Thickness	5.5 mm
Material	ABS (Acrylonitrile Butadiene Styrene)
Collapse test	15 bar
Temperature (max 1 hour)	+80°C (176 °F)
Max working load (3)	> 500 Kg
