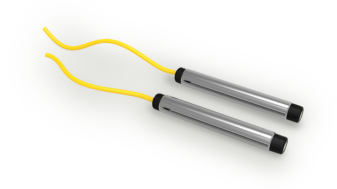

Resistive Piezometers And Pressure Transducers

InfrastructureGeotechnical Instrumentation

The Resistive Piezometers And Pressure Transducers also called semiconductor piezometers or strain gauge piezometers, are very accurate pressure transducers suitable for high frequency readings and short term applications. Their robust 4-20mA output signals are easy to read and automate with OMNIAlog and suitable for long-distance transmissions. They can be connected to seismic dataloggers for monitoring rapid changes in pore-water pressure such as those produced by earthquakes. More info.↗

Quantity

Specification

Model type	piezo-resistive piezometer with LAE filter and or with HAE filter
Available full scales (FS)	200 kPa, 500 kPa, 1.0 MPa, 2.0 MPa, 5.0 MPa (29 psi, 72.5 psi, 145 psi, 290 psi, 725 psi)
Overload	1.3 x FS (200 kPa range) 2 x FS (for all other ranges)
Sensitivity	0.01% FS
Total Accuracy Lin. MPE Pol. MPE	< ±0.25% FS < ±0.20% FS (for 100 and 200 kPa FS) and< ±0.15% FS (all other FS)
Signal output	4 - 20 mA current loop
Electric supply	12 -40 V DC
Temp. operating range	-20 to +80 °C
Temperature sensor	built-in thermistor, added on request
Material	stainless steel
Dimensions	Ø 27 mm (1.1”), length 193 mm (7.6”)
Weight	0.5 kg (1.1 lbs)
