RIPOS & RIPOS Smart

ClimateOther

A system for exact position, distance, and level measurements – RIPOS and RIPOS smart absolute encoders are well-suited for a variety of water management applications.

Quantity

Overview

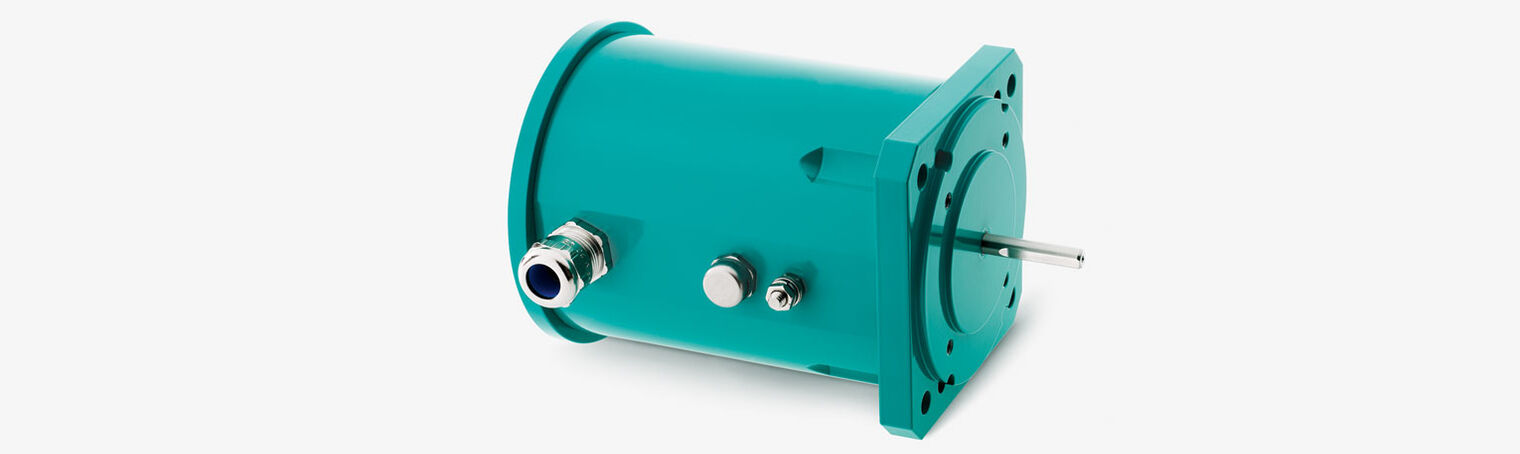

RIPOS product details

Measuring range 0 ... 360°/4096 rotations, accuracy ± 0.044°
Integrated process value calculations (limit values, linearization)
Cable connection with cable glands
1 analog output with HART® (fully implemented)
4 digital outputs (optional)
1 status output
Parallel code outputs (BCD, Gray, binary) on up to 22 digital outputs (optional)

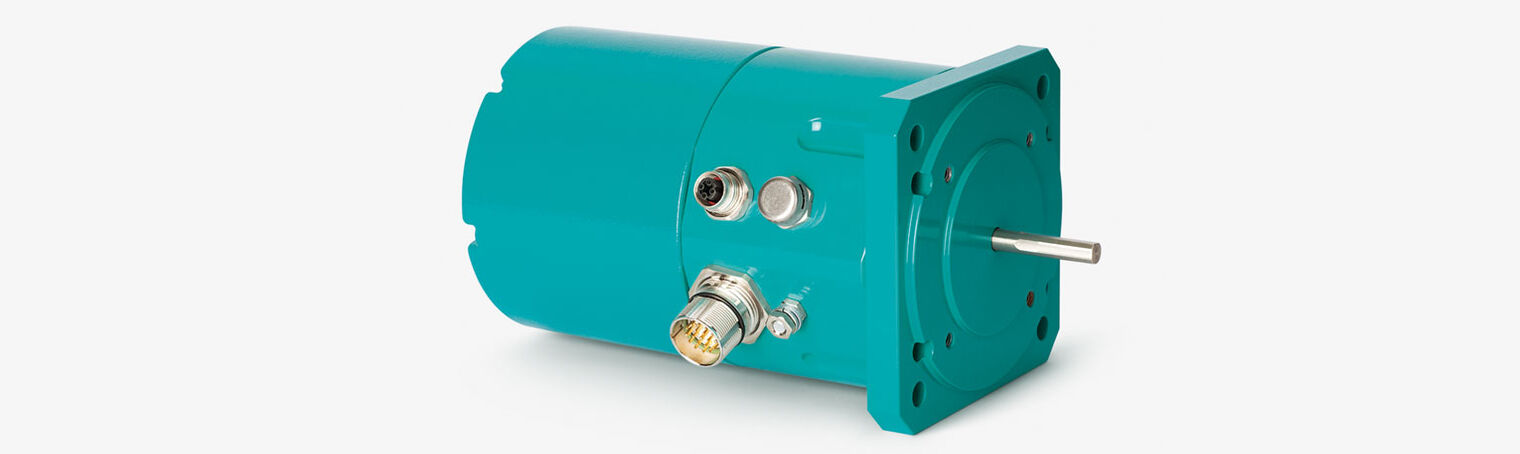

RIPOS smart product details

Measuring range 0 ... 360°/4096 rotations, accuracy ± 0.088°
Integrated web server for easy configuration and diagnostics
Integrated remotely accessible data logger
Comprehensive process value processing (rake operation, interpolation curves, integration)
Cable connection with plugs (M23, M12)
1 analog output
4 digital outputs
1 status output
1 Modbus RTU interface (master + slave)
1 Modbus TCP interface (master + slave)
1 Ethernet-100BaseT interface
IEC-60870-5-104 protocol
Support of several sensors connected via Modbus RTU+TCP
Heater (optional)

Specification

Technical Data

	RIPOS	RIPOS smart
Measuring Range	4,096 revolutions	4,096 revolutions
Measuring Accuracy	0.088° (1 LSB)	0.088° (1 LSB)
Measuring Resolution	0.044°	0.088°

Outputs

Analogue (4-20mA)	1	1
Status (relays)	1 (option)	1
Digital (relays)	21+1 (option)	4

Interfaces

HART	Yes	-
RS485 Modbus RTU	-	1
Modbus TCP	-	1
Ethernet 100BaseT	-	1
IEC 60870-5-104	-	1

Operating Conditions

Protection Class	IP67	IP67
Operating Temperature	-40°C...+60°C	-20°C...+60°C
Operating Voltage	19.2...60VDC
Vibration IEC (EN)60068-2-6	20ms-2 (10...500Hz)
Shock IEC (EN)60068-2-27	200ms-2 (12ms)
