RLD-1401 Refrigerant Leak Detector thumbnail 1

Exotek Instruments

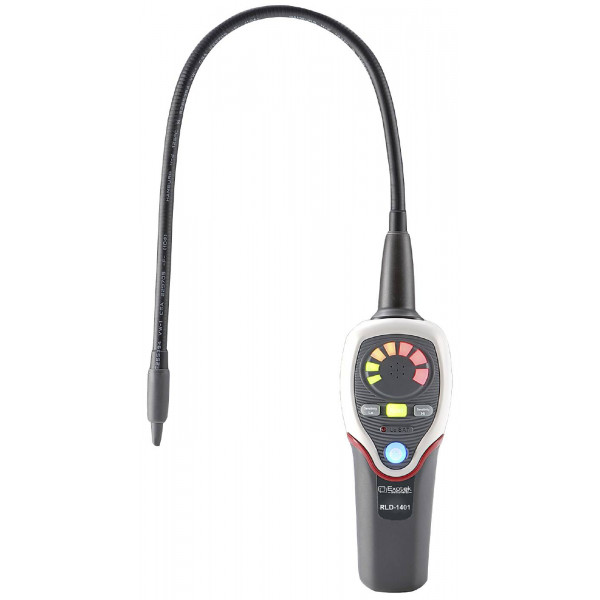

RLD-1401 Refrigerant Leak Detector

ClimatePortable Environmental Meter

The micro processor controlled instrument is usefull to finding leaks of the primary circuit on Cooling system as well as heat pumps where refrigerants are used. The preheated semi-conductor sensor is very sensitive for a vide variety of refrigerants.

Quantity

Overview

40 cm Gooseneck to detect leaks in hard to reach areas.
Variable Intensity Audio Alarm
3 Levels of Sensitivity
Ambient Concentration Reset

Specification

Intended User	Maintenance personnel HVAC equipment
Refrigerants	R-134a, R-404A, R-410A, R-407C, R-22,
Measuring Principle	Heated Semiconductor Gas sensor. The instrument is fitted with an Air Suction System for faster response and sensitivity.
Measuring Sensitivity	3 grams/ Year depending on type of refrigerant.
Settings	3 sensitivity levels
Battery Warning	Yes
Working Range	0° C/+40° C
Display	7-LED Three coloured bar scale
Resolution	0,1 %
Casing	ABS Plastic
Sensor	Heated Semiconductor Gas sensor
Battery	4 AA Size Alkaline batteries
Case	Hard case
Size (L x H x D )	217 x 66 x 56 mm
Weight (Incl. battery)	400 g
Warranty	1 year against manufacturer defect
