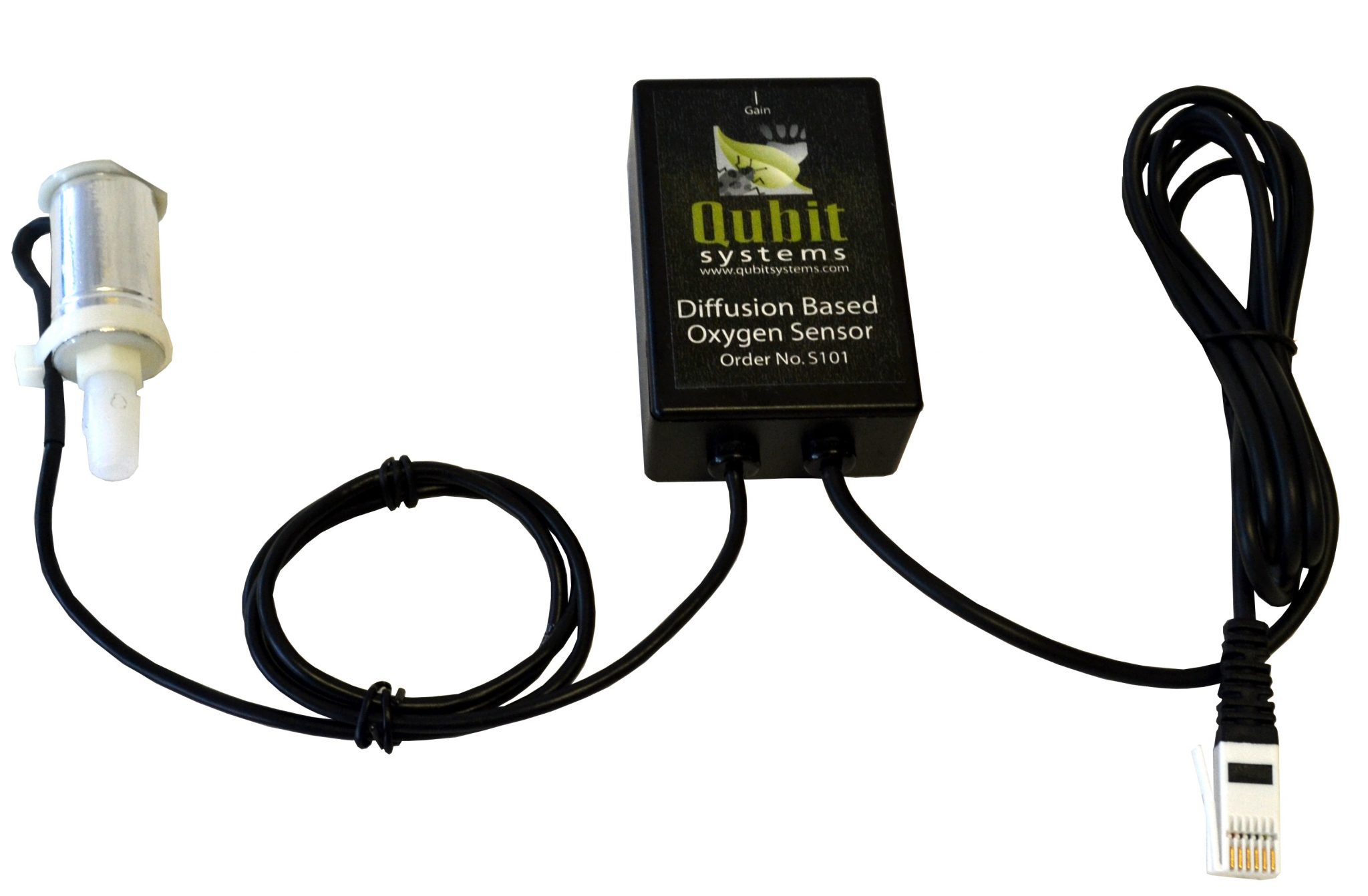

S101 Diffusion O2 Sensor

Soil & CropsPhotosynthesis Chlorophyll & Respiration
The S101 Diffusion Oxygen Sensor measures oxygen concentration from 0-100% in a sealed chamber. Oxygen difuses to the sensor from surrounding atmosphere. This sensor is the core of Qubit Systems’ PH1LP Teaching Photosynthesis Package.
Quantity
1

Overview

  • Simple one point calibration requiring only atmospheric air
  • Output linear
  • 90% response in 12 seconds
  • Adjustable gain
  • Output range adjustable from 0 – 25% = 5 V
  • Temperature compensation
  • Expected sensor life is 3 to 5 years. Replacements are inexpensive.
  • Sensor is fitted with 1/8 inch Nylon NPT Union
    Oxygen Sensor.

Specification

Principle Acid Electrolyte, Teflon Diffusion Membrane
Detection Range 0-25 %O2 (Linear) standard (can extend to 0-100%)
Resolution ±50 ppm
Accuracy ± 0.21% of Full Scale
Influence by Other Gases Ammonia and Ozone
Response Time (90%) 12 Seconds
Required Sample Volume Minimum of 2-3 mL/min

Related Products

Q-G265 Flow Monitor 2 L

Qubit Systems

Q-G265 Flow Monitor 2 L

The Q-G265 Flow Monitor is a gas mass flow monitor ideal for measuring and tracking continuous flow rates, within the range of 0 to 2 L/min.

Learn More
Q-G266 Flow Monitor 1L

Qubit Systems

Q-G266 Flow Monitor 1L

The Q-G266 Flow Monitor is a gas flow monitor, ideal for measuring and tracking continuous flow rates, within the range of 0 to 1 L/min.

Learn More
Q-S151 CO2 Analyzer 0-2000ppm

Qubit Systems

Q-S151 CO2 Analyzer 0-2000ppm

Q-S151 Infrared CO2 Analyzer is a non-dispersive infrared CO2 analyzer that measures CO2 in 0 to 2000 ppm range with 1 ppm resolution.

Learn More

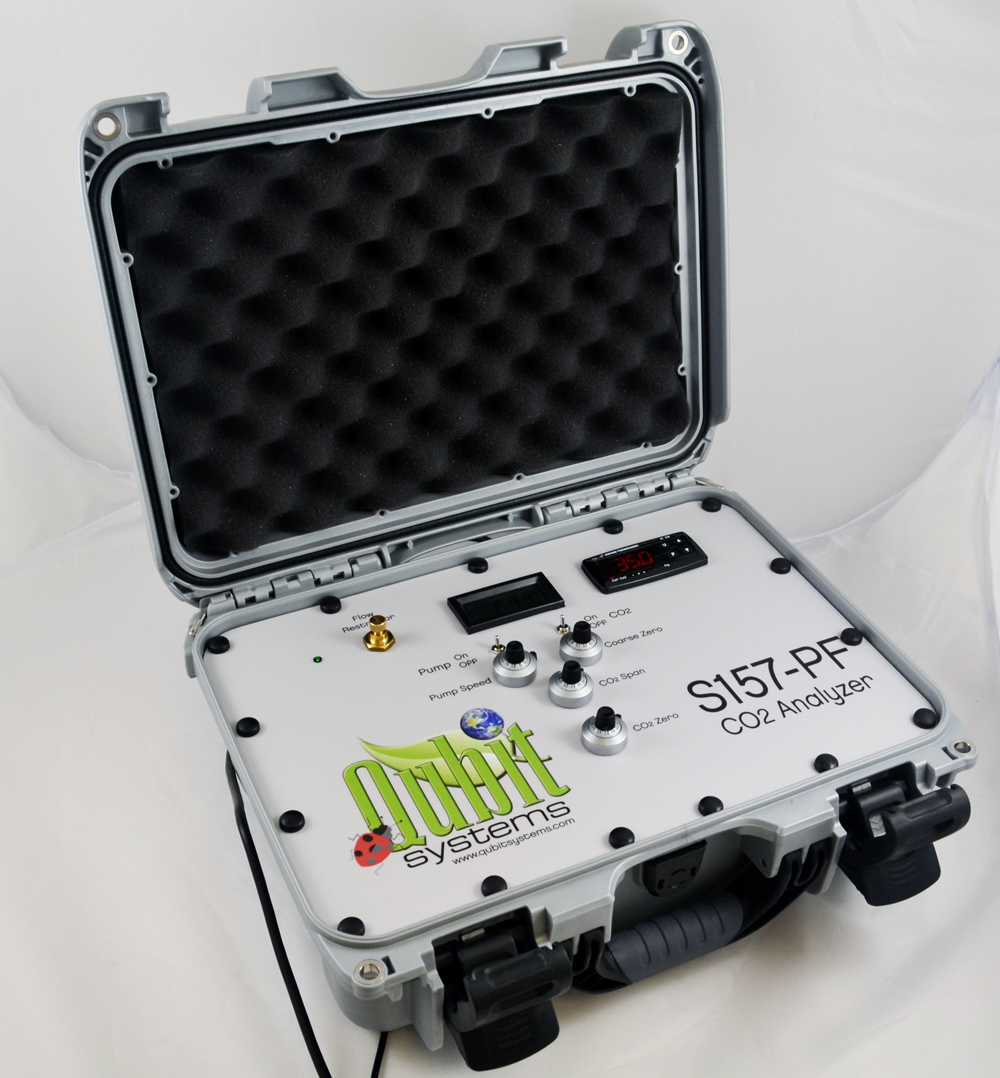

S157 CO2 Analyzer 0-2000ppm
