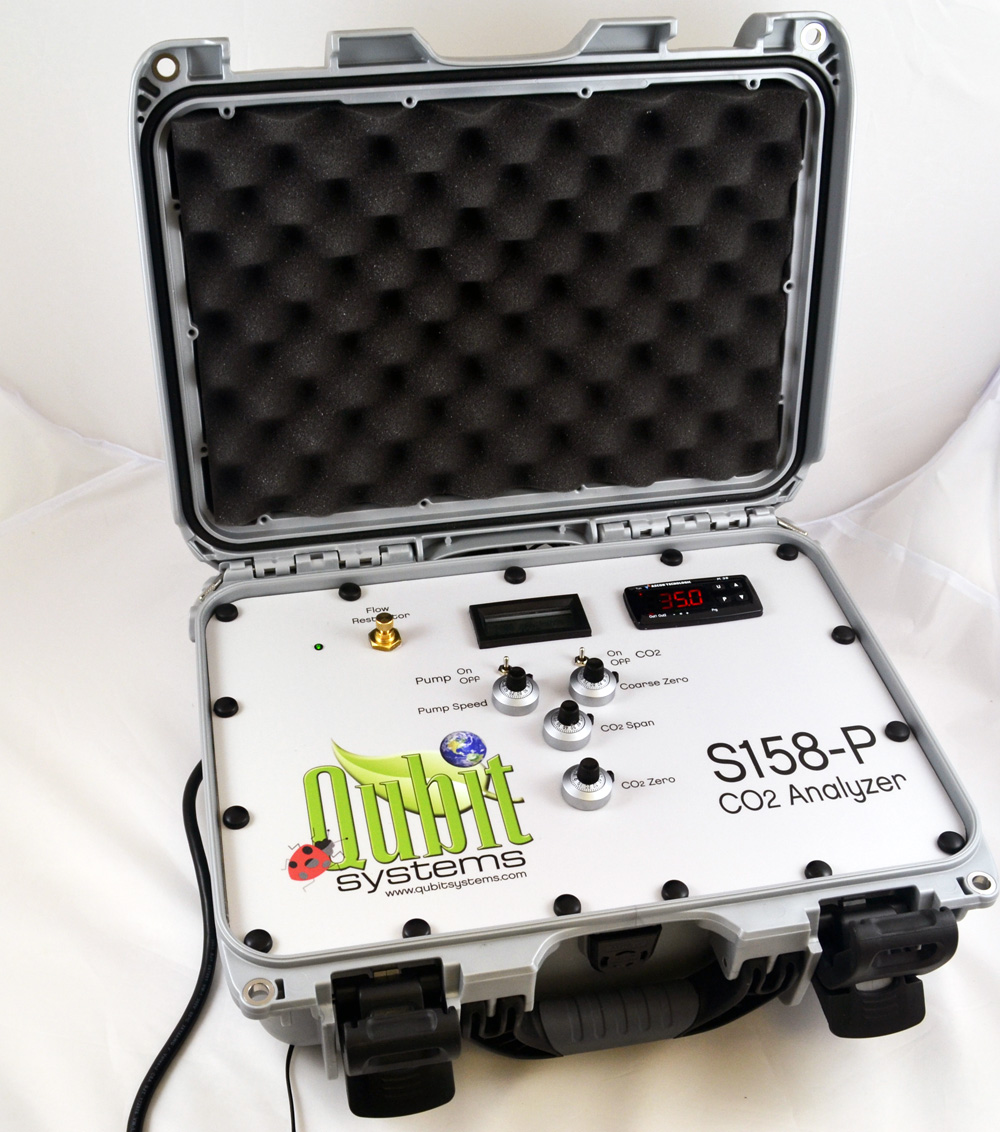

S158 CO2 Analyzer 0-10%
S158 CO2 Analyzer is a single channel non-dispersive infrared CO2 analyzer that measures CO2 in 0 to 10% range (standard) with better than 0.01% accuracy.
Overview
- Standard range of 0 – 10% CO2, custom ranges available
- 0.01% CO2 on digital display, better resolution in software.
- Non-dispersive infrared technology
- Modulated infrared light source = no moving parts
- Built in temperature control of the sensor
- 0 – 5 V analog output
- Linear two point calibration
- Optional battery pack for field use
- Optional built in gas pump and Flow Monitor
- Compact and portable
- Weatherproof case
Specification
| Operating principle | Non-dispersive infrared sensor |
|---|---|
| Gas sampling mode | Flowing gas stream, sealed chamber |
| Maximum gas flow rate | 650 mL/min |
| Measurement range (LCD display) | 0 – 10.00% |
| Analog output, low sensitivity | 0 – 10% |
| Repeatability | Better than ±1% of reading |
| Accuracy | 0.1% of full scale |
