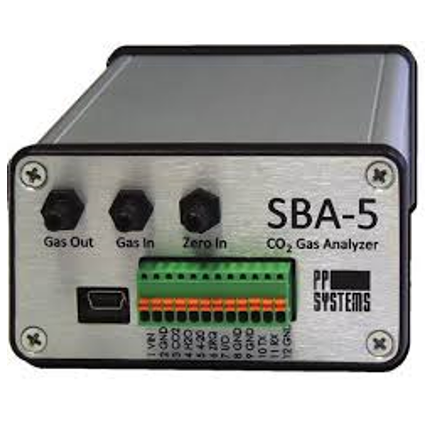

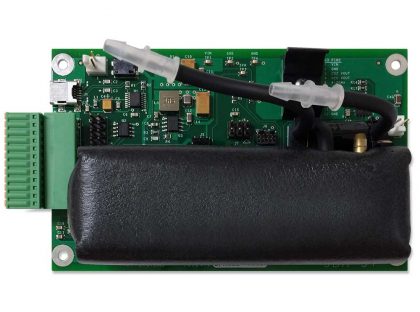

SBA-5 CO2 Analyzer

Soil & CropsPhotosynthesis Chlorophyll & Respiration

The SBA-5 features a non-dispersive, infrared measurement technique coupled with microprocessor-based signal processing resulting in precise measurement of CO2. Our innovative “Auto-Zero” technology and insulated, thermostatically controlled optical bench ensure fast warm-up, long-term stability, accuracy, and analyzer calibration. It also minimizes the effects of sample cell contamination, IR source aging, changes in detector sensitivity, and pre-amplifier gain.

Quantity

Overview

High Precision CO₂ gas analyzer
No factory or field calibration required
Multiple ranges up to 100000 ppm CO₂ (10%)
Accuracy: <1% of span concentration over calibrated range
Dynamic or static measurement capability
Operation from 6-18 VDC power supply
Low power consumption
Analog and digital output
Small footprint (7.5 cm W x 12 cm L x 3.5 cm H) and lightweight
Low cost

Specification

Analysis Method	Non-dispersive infrared, configured as an absolute absorptiometer with microprocessor control of linearization.
CO2 Measurement Ranges	s 0-1000 ppm (µmol mol-1) 0-2000 ppm (µmol mol-1) 0-5000 ppm (µmol mol-1) 0-10000 ppm (µmol mol-1) 0-20000 ppm (µmol mol-1) 0-30000 ppm (µmol mol-1) 0-50000 ppm (µmol mol-1) 0-100000 ppm (µmol mol-1)
Pressure Compensation Range	60-115 kPa
Accuracy	< 1% of span concentration over the calibrated range but limited by the accuracy of the calibration mixture
Linearity	< 1% throughout the range
Stability	Auto-Zero at regular intervals corrects for sample cell contamination, source and detector aging and changes in electronics.
