Photon Systems Instruments (PSI)

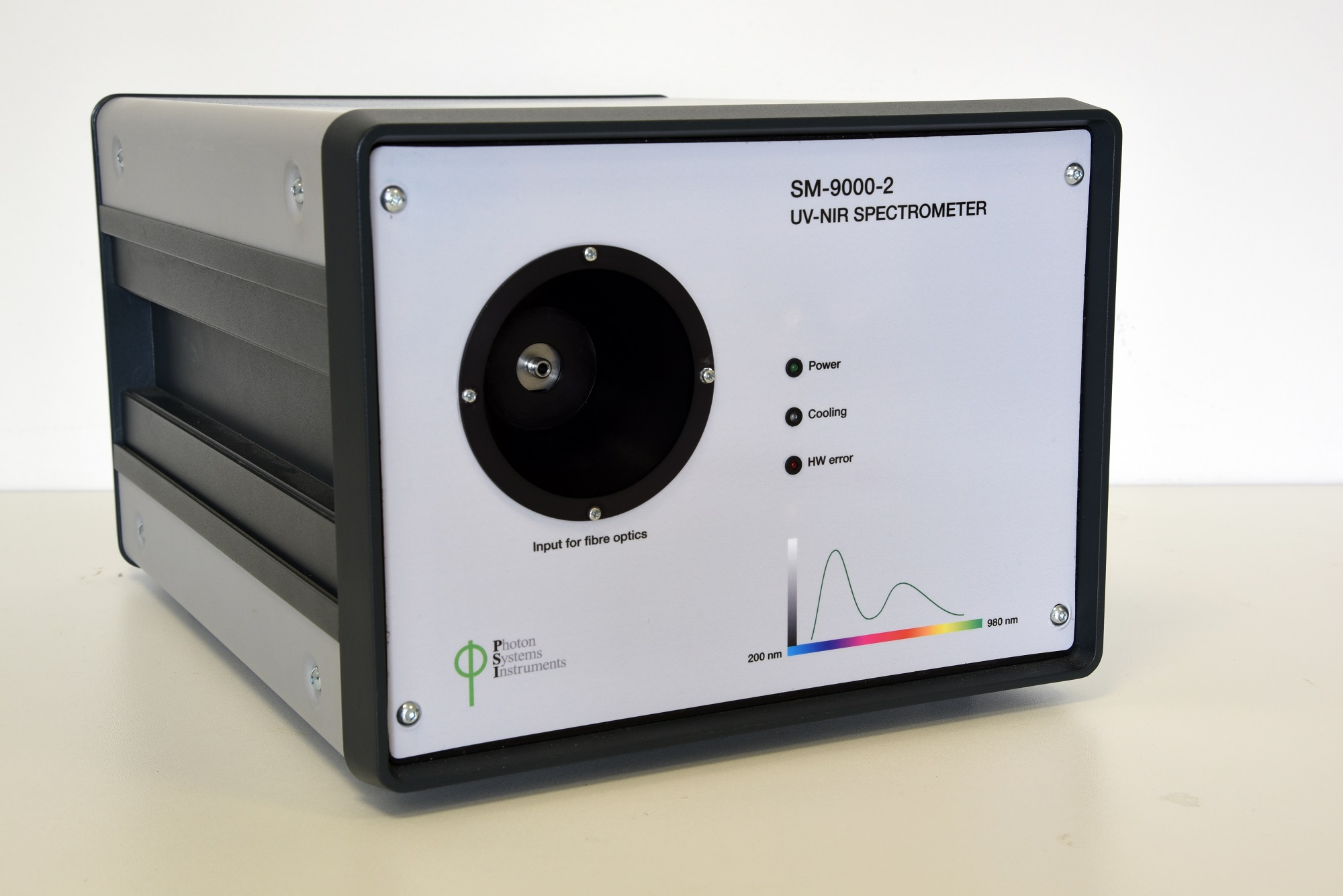

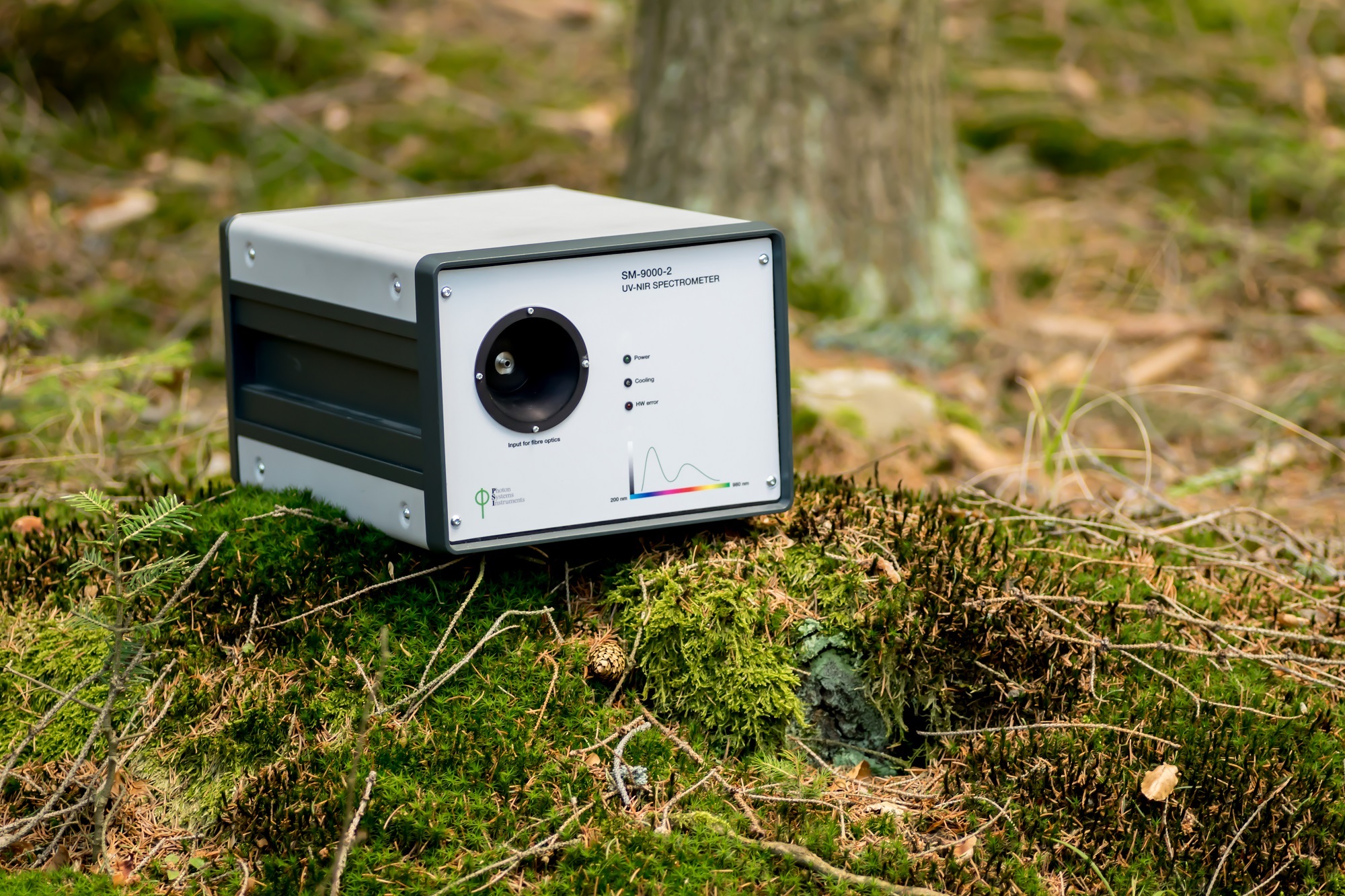

Spectrometer SM 9000

Soil & CropsPhotosynthesis Chlorophyll & Respiration

Spectrometer SM 9000 was developed for high-resolution, fiber optic spectroscopy applications in the UV/VIS to NIR range. It can be used as a stand-alone instrument or as a substantial enhancement of other PSI instruments to analyze spectral composition of irradiance. Ultra-high sensitivity of the instrument allows measuring fluorescence emission spectra of individual cells when combined with µ-FluorCam. The spectra can be measured in the range from UV (200 nm) to NIR (980 nm) with FWHM bandwidth of 3.5 nm. Fast recording can capture as many as 100 spectra per second with data resolution of 16 bits.

Quantity
1

Overview

  • Ultra-high sensitivity.
  • Suitable for microspectrophotometry.
  • FWHM bandwidth of 3.5 nm.
  • Small-footprint, modular, robust, and thermally stable.
  • Very low heat generation.
  • 10 µs – 10 ms duration of flashes.
  • Variable exposure time, from 1 millisecond to minutes.
  • Kinetic spectra (max. 100 per second).

Specification

Optical Entrance Diameter 0.5 NA = 0.22 mounted in SMA-coupling, dismountable
Entrance slit 70 µm x 1400 µm (optical entrance)
Spectral range 200 nm – 980 nm
Wavelength accuracy absolute < 0.5 nm
Reproducibility < 0.1 nm
Temperature – induced drift <0.01 nm/K
Grating Flat-field correction
Spectral distance of pixel Δλ pixel ~ 0.8 nm

Downloads

9000 Download9000

Related Products

SpectraPen SP 110

Photon Systems Instruments (PSI)

SpectraPen SP 110

The SpectraPen SP 110 is a low-cost portable spectrophotometer ideal as a general purpose instrument for research laboratories, agricultural and industrial…

Learn More
Step-In FytoScope FS 3400

Photon Systems Instruments (PSI)

Step-In FytoScope FS 3400

Step-In FytoScope FS-SI are plant growth chambers that utilize Light Emiting Diodes (LEDs) as a sole light source.

Learn More
Large-Scale Photobioreactors

Photon Systems Instruments (PSI)

Large-Scale Photobioreactors

PSI Large-Scale Photobioreactors are systems that create a controlled artificial environment for upscaling of photosynthetic microorganisms’ biomass production.

Learn More

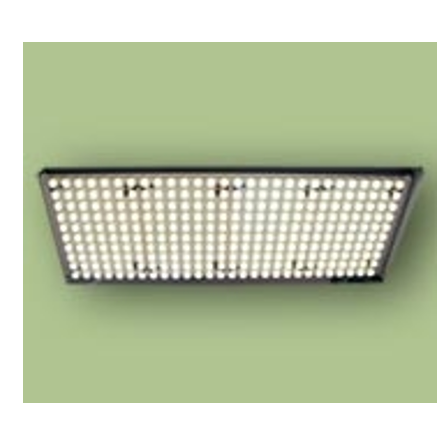

LED Fyto-Panels
