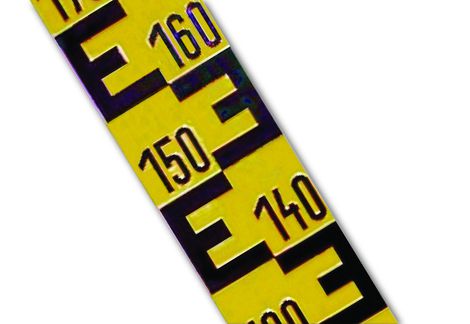

Staff Gauges thumbnail 2

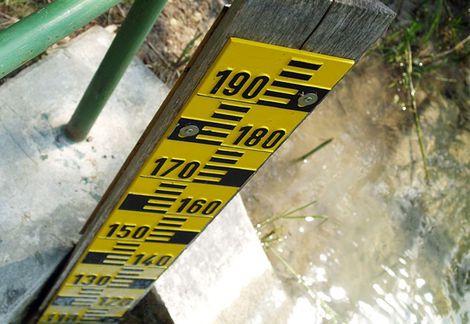

Staff Gauges thumbnail 3

Staff Gauges thumbnail 4

Staff Gauges thumbnail 5

SEBA Hydrometrie

Staff Gauges

WaterLevel Measurement & Monitoring

Reference level for adjustment and control of stationary level measuring systems. As simple water level indicator in rivers, canals, lakes, reservoirs, wells and tanks

Quantity

1

Overview

Staff gauges made of robust cast aluminum with raised 2 cm "E-scale" graduation (1 cm "E-scale" graduation as an option is possible)
Measuring range: 0-12 m (standard) in 1 meter sections
Scaling and figuring in cm or AMSL (above mean sea level) , black on yellow
Coating made of shock and weather-proof special lacquer

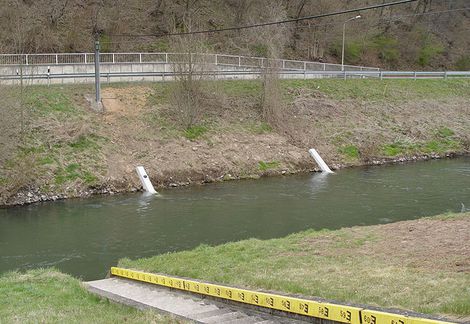

Available finishes: Plumb line-staff gauge, inclined staff gauges, staircase level

Specification

Plumb Line Staff Gauge

Measuring Range	Any, 0-12m (standard)
Figuring	cm or mAD
Scaling	2cm E-scale graduation, sublime, dm-numbering (standard), 1 cm E-scale graduation (optional)
Colour	Scaling and figures in black over yellow
Material	Cast aluminum
Coating	Special impact and weather-proof lacquer
Dimension	1000 x 150 x 5 mm (LxWxD)
Fastening	4 elongated slots to adjust the staff gauge, 9mm wide

Inclined Staff Gauge

Measuring Range	Any, according to customer specifications
Numbering	cm or AMSL
Scaling	2cm E-scale graduation, sublime, dm-numbering (standard)
Inclination	Any, according to customer specifications
Colour	Scaling and figures in black over yellow
Material	Cast aluminum
Coating	Special impact and weather-proof lacquer
Dimension	1000 x 150 x 5 mm (LxWxD)
Fastening	4 elongated slots to adjust the staff gauge, 9mm wide

Downloads

B21_Lattenpegel_d	DownloadB21_Lattenpegel_d

Related Products

Water Quality Dipper KLL-Q-2

SEBA Hydrometrie

Water Quality Dipper KLL-Q-2

Z6 Counting Device

SEBA Hydrometrie

Z6 Counting Device

Pneumatic Gauge PS-Sensor

SEBA Hydrometrie

Pneumatic Gauge PS-Sensor

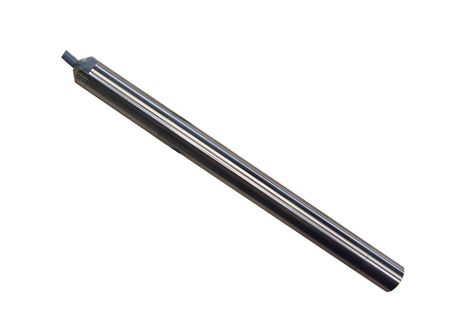

Pressure probe DS(T) 22
