Surface Contact Temperature Sensor

ClimateMeteorological Station & Sensors

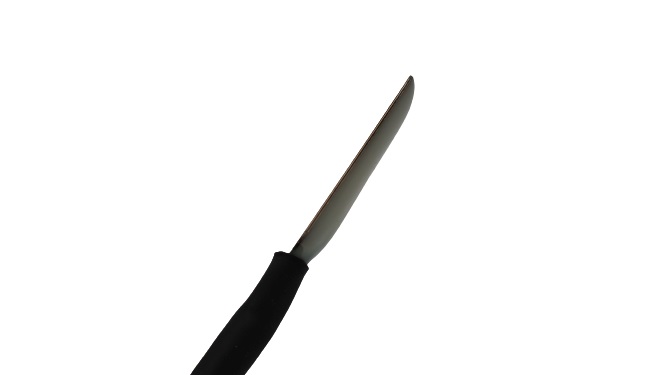

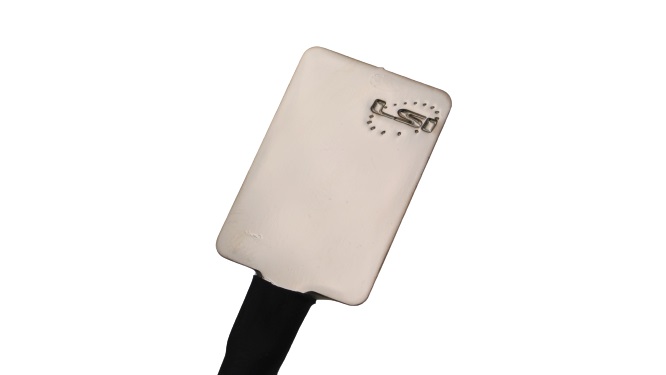

Plate-made sensor for surface temperature measurements. Its compact dimensions facilitate installation even in small spaces. It can be easily fixed using silicon, adhesive band or thermoconductive paste.

Quantity

Overview

Highlights

Robust sensor for outdoor application even in severe environmental conditions;
4 wires Pt100 technology for long distance cable connections;
Ideal for PV module surface temperature measurements;
Pt100 1/3 DIN B Class AA sensitive element for outstanding accuracy (0.15°C);
Flat cable for cabling in narrow path;
Accessories for 4-20 mA and RS485 signal output;
Internal ISO17025 accreditated calibration laboratory

Available Models

	DLE124A	DLE124A.1	EST124
Connector	Free wires (4-wire)	Male connector for DWA5nn cables	Mini-Din connector
Cable	L=20 m - Ø 5 mm	L=20 m - Ø 5 mm	L=10 m flat
Cable Type	External polyurethane covering - Ø 6 mm	External polyurethane covering - Ø 6 mm	Flat ribbon cable AWG28
Use	Indoor and outdoor	Indoor and outdoor	Indoor
Data Logger Compatibility	M-Log (ELO008) R-Log (ELR515) E-Log, A-Log	Using DWA5nn extension cable: M-Log (ELO008) R-Log (ELR515) E-Log, A-Log	M-Log (ELO009) R-Log (ELR510.1)
