TARGAS-1

Soil & CropsPhotosynthesis Chlorophyll & Respiration

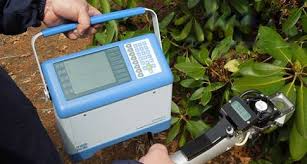

The TARGAS-1 console is compact, lightweight (2.1 kg) and is packaged in a rugged, aluminum enclosure with a shock absorbing polyurethane base making it extremely robust and reliable under harsh environmental conditions.

Quantity

Overview

Lightweight console (2.1 kg) and leaf cuvette (0.7 kg)
High precision, compact, non-dispersive infrared gas analyzers for both CO₂ and H₂O
Automatic temperature and pressure compensation
Control of CO₂ and H₂O
Control of light (light unit optional)
Powerful, internal rechargeable battery providing up to 10 hours continuous use
Large touch display with excellent sunlight readability and optimized viewing angle
Numerical and graphical presentation of data
Built-in air supply unit and sampling pump with electronic flow sensors
Wide range of accessories and sensors available

Specification

Main Console

Analysis Method	Two non-dispersive infrared gas analyzers, configured as an absolute absorptiometer with microprocessor control of linearization for both CO2 and H2O. All readings are automatically corrected for temperature, pressure and foreign gas broadening.
CO2 Range	0 – 10000 µmol mol-1 Precision: 1 µmol mol-1
H2O Range	0 – 75 mb
Pressure Compensation Range	80 – 115 kPa
Absolute Accuracy	< 1% of span concentration over the calibrated range but limited by the accuracy of the calibration mixture
Differential Accuracy	+/- 1 umol mol-1 for CO2 differential up to 50 µmol mol-1
Linearity	< 1% throughout the range
Stability	Auto-Zero at regular intervals corrects for sample cell contamination, source and detector aging and changes in electronics.
