TEL-310S Telecoordinometer

InfrastructureGeotechnical Instrumentation

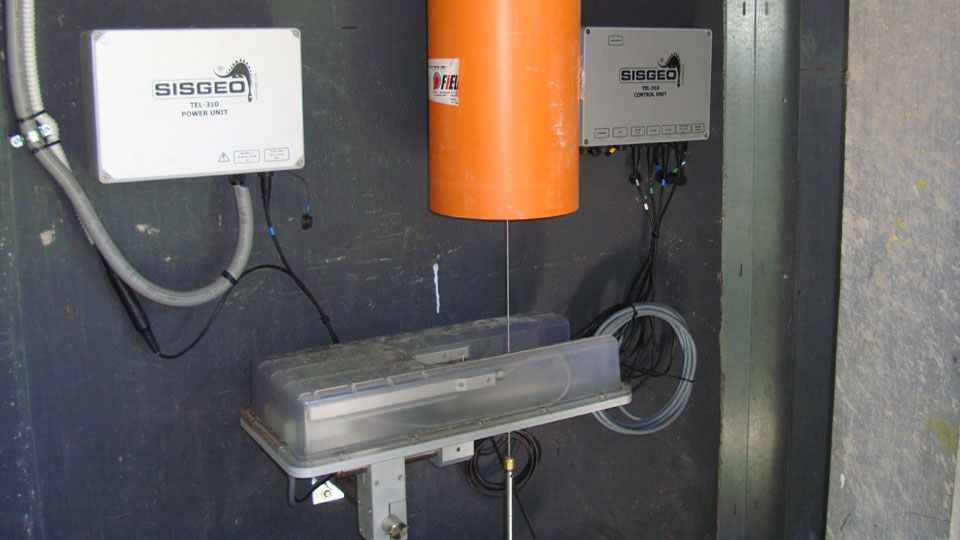

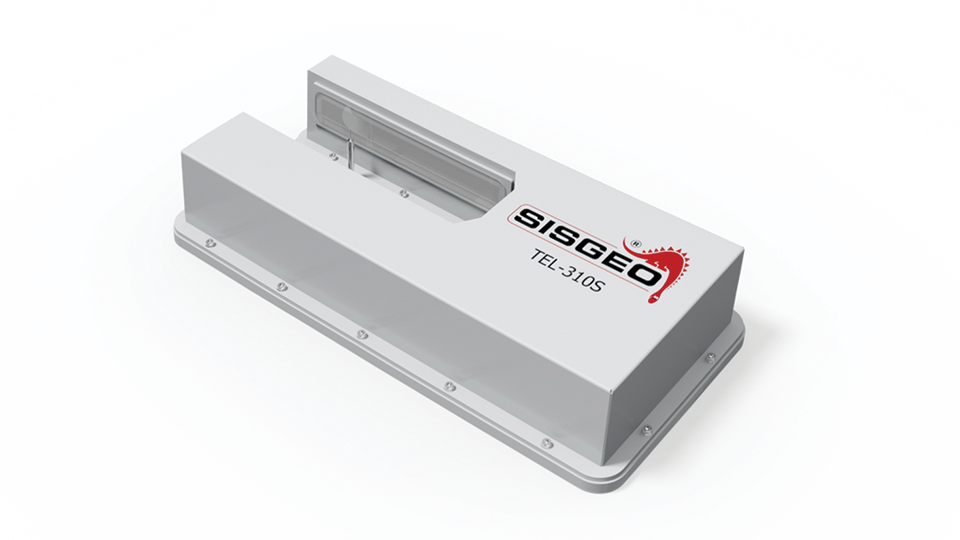

The TEL - 310 Telecoordinometer (Telependulum) is designed to take automatic readings of the coordinates of pendulum’s plumb lines. It is characterized by high accuracy and resolution, wide measuring range and the possibility of measuring many steel wire simultaneously. TEL - 310 is composed by three units: SUS (optical sensor unit), CUS (control unit with on board web server) and PWS (power supply unit). Moreover this instrument offers auto-diagnostic functions for measurements validation through a built-in software. Either local readings by portable PC or remote operation via RS-485 serial interface are possible. TEL - 310 is also implemented with 4-20 mA output for OMNIAlog network application. More info.↗

Quantity

Specification

Measuring principle	contactless
Measurement area	X-axis: 0-150 mm (145 mm real) Y-axis: 0-60 mm
Resolution	0.005 mm
Repeatability and hysteresis	X-axis: ±0.007 mm / ±0.005 mA Y-axis: ±0.012 mm / ±0.007 mA
Accuracy (Pol. MPE)	X-axis: ±0.010 mA Y-axis: ±0.015 mA
Power supply	85-230V AC, 50-60Hz
Output: - Local readings - Remote monitoring	Ethernet, USB 2.0, RS485, 4-20mA (to OMNIAlog)
Memory	2 GB
Temp. operating range	-10°C +60°C
Detectable wire (diameter	minimum 1 mm
Protection	IP68 until 50 kPa
