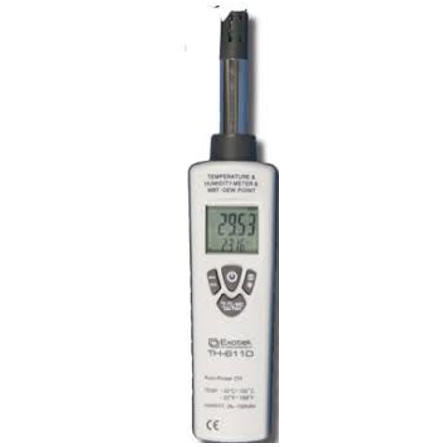

TH-611D Thermo-Hygrometer With Dewpoint

ClimatePortable Environmental Meter

It is an ideal Humidity & Temperature Meter Instrument with scores of practical applications for laboratorial, industrial, Engineer and professional use

Quantity

Overview

The digital Humidity & Temperature Meter & Wet Bulb Temperature Dew Point temperature has been designed to combine the functions of Humidity Meter, Temperature Meter, Wet Bulb Temperature and Dew point temperature.
It is an ideal Humidity & Temperature Meter Instrument with scores of practical applications for laboratorial, industrial, Engineer and professional use.
Auto Power Off: Meter automatically shuts down after approx.15 minutes of inactivity (Sleep Mode)

Specification

Function	Range	Resolution	Accuracy
Humidity	0%~100%RH	0,1%	+ 2%RH (at 25˚C, 20%~80% RH). + 2.5%RH (at other ranges) Accuracy Note: Accuracy is specified for the following ambient temperature range: 64 to 82°F (18 to 28°C)
Air Temp	–30˚C~ 100˚C, -0˚F~ 199˚F	0.1°C	+ 0.5˚C/+ 0.9˚F(at 25˚C) + 0.8˚C/+ 1.5˚F(all other ranges)
Wet Bulb	0 ~ 80°C	0.1°C	± 0.5 °C
Dew Point	-30 - 100°C	0.1°C	± 0.5 °C

Operating Conditions	32 to 104oF (0 to 40oC); < 80% RH non-condensing
Storage Conditions	14 to 140oF (-10 to 60oC); <80% RH non-condensing
Display	Large 4-1/2 dual digital LCD display with backlight
Sensor Type	A single chip relative humidity and temperature multi sensor module comprising a calibrated digital output
Over-range	“OL” mark indication.
Sampling Rate	2.5 samples per second
Dimensions	225 (H) x 45 (W) x 34 (D) mm
Weight	200 (g)
Battery	One 9V battery, NEDA1604 or 6F22
