Unidata

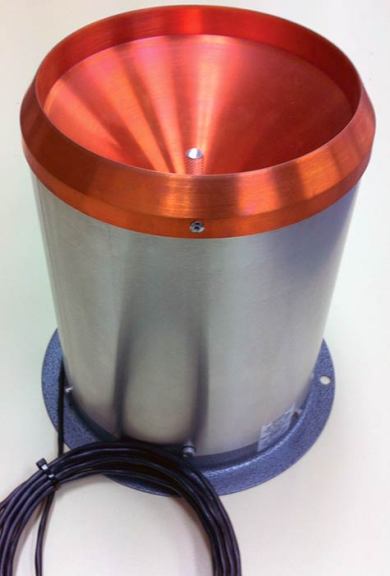

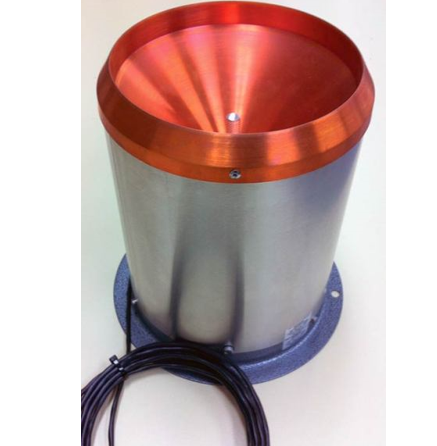

Tipping Bucket Rainfall Gauge
ClimateMeteorological Station & Sensors
The Unidata 6506 tipping bucket rain gauge uses the tipping bucket principle to record rainfall. The Unidata 6506 can be connected to many dataloggers/ RTUs including the Unidata Neon Remote Logger range.
Quantity
1
Overview
- The Unidata 6506 tipping bucket rain gauge uses the tipping bucket principle to record rainfall.
- The Unidata 6506 can be connected to many dataloggers/ RTUs including the Unidata Neon Remote Logger range.
Specification
| Sensitivity |
0.2mm preadjusted |
|---|---|
| Range | 0 to 200mm of rain per hour |
| Accuracy | 4% up to 200mm/hour |
| Contact Time | 40 milliseconds |
Downloads
| doc_1941_181004023724 | Downloaddoc_1941_181004023724 |
|---|
