Ultrasonic Anemometer

ClimateMeteorological Station & Sensors

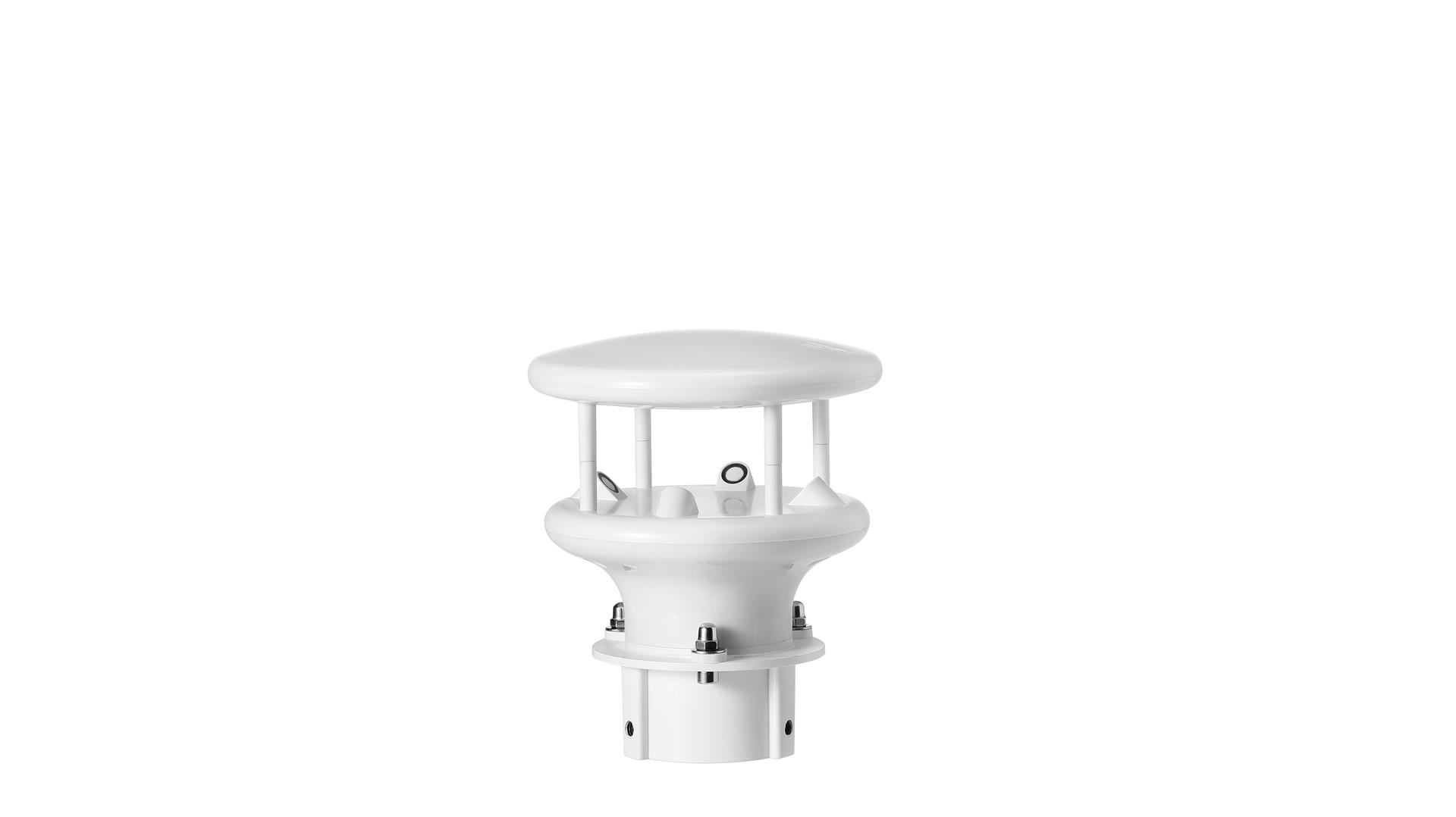

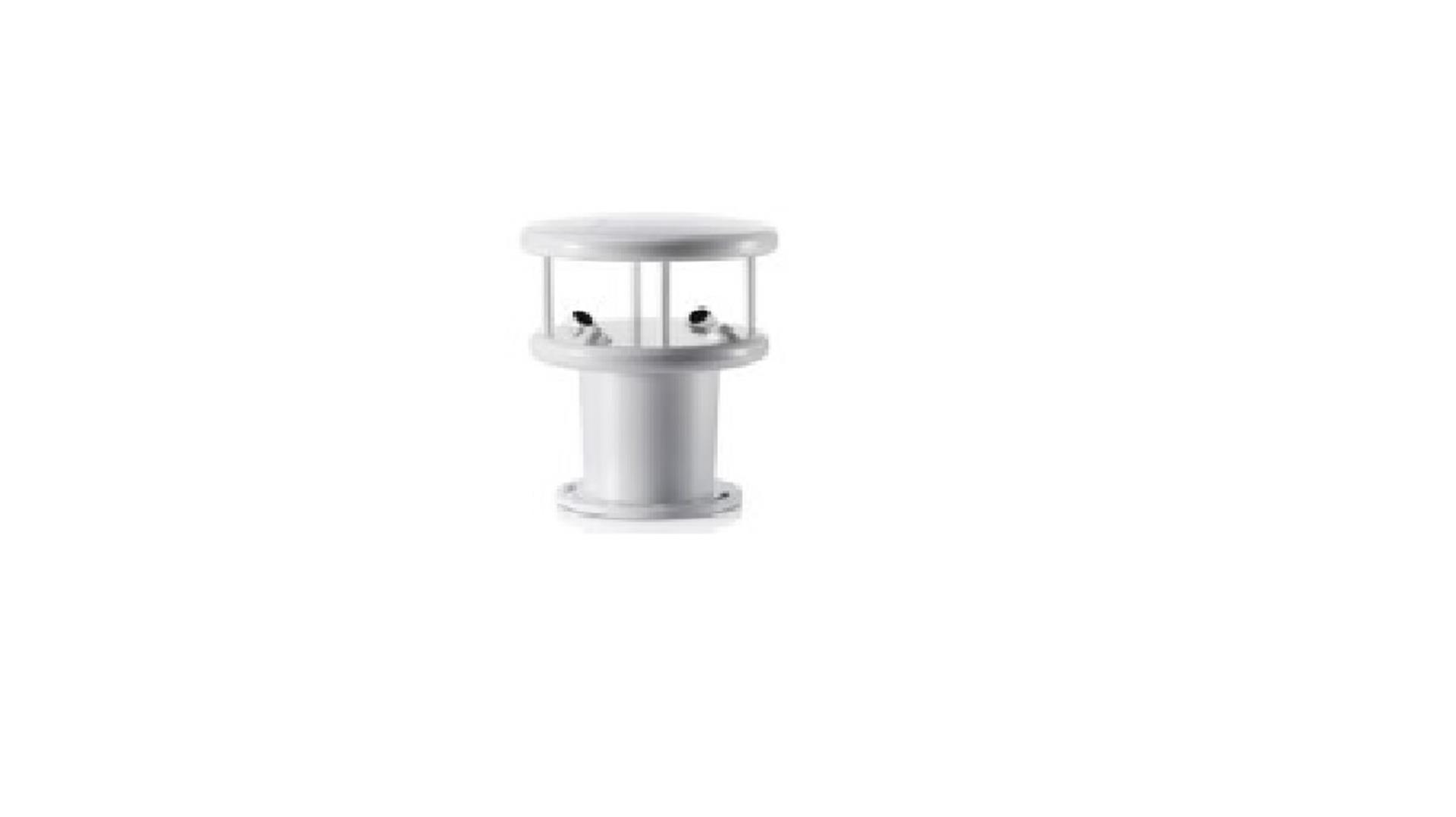

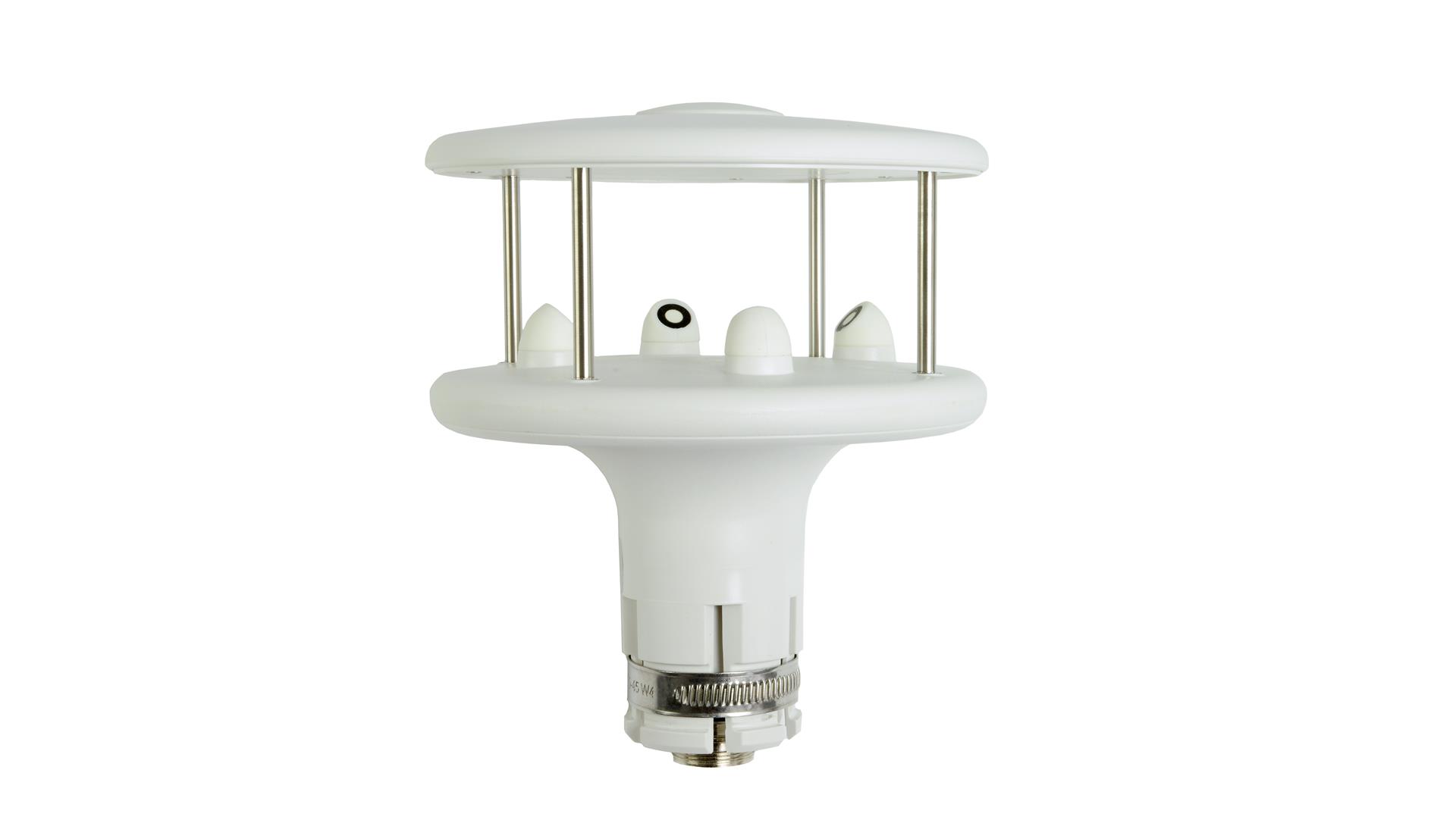

Ideal sensors for general meteorological applications requiring no moving parts for low-maintenance or measurements with fast response even in very low-range wind speed conditions. Model DNB205 (serial output) is a compact size sensor very suitable in lite weather stations. DNB305-305.1 (serial output) are made in Aluminum and have very good performances. DNB306-306.1 models have 4÷20 mA outputs. DNB105.1 model is made for high speed range up to 85 m/s, it comes with 4÷20 mA output.

Quantity

Overview

Highlights

Wide range of signal outputs 4-20 mA, RS232/485 Modbus;
No moving parts;
Very-High speed wind measurement (0-85 m/s) using DNB105.1 modek;
Fast response time and low measurement threshold;
Low cost compact versions option (DNB205/205.2);
In-house ISO17025 calibration laboratory.

Available Model

	DNB205 DNB205.2	DNB305 DNB305.2	DNB305.1	DNB306	DNB306.1	DNB105.2	DNB146
Output	DNB205-305-305.1: RS485 DNB205.2-305.2: RS232			2x4...20 mA		2x4...20 mA 2xRS485-RS232	RS485 5x4...20 mA

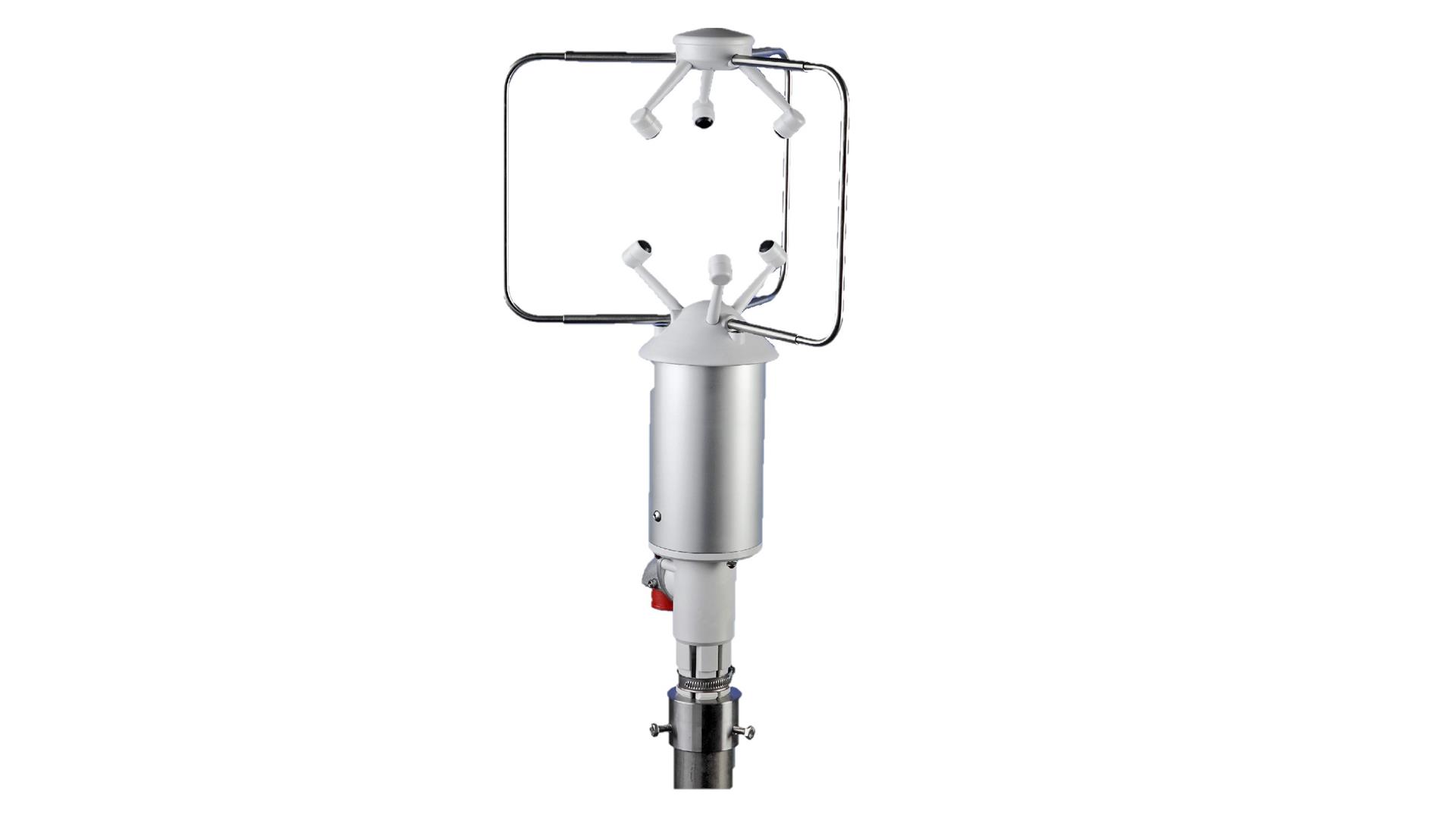

Type	Sonic 2-Axis (U-V)						Sonic 3-Axis
