UT10 3m (10-ft) Instrument Tower

ClimateMeteorological Station & Sensors

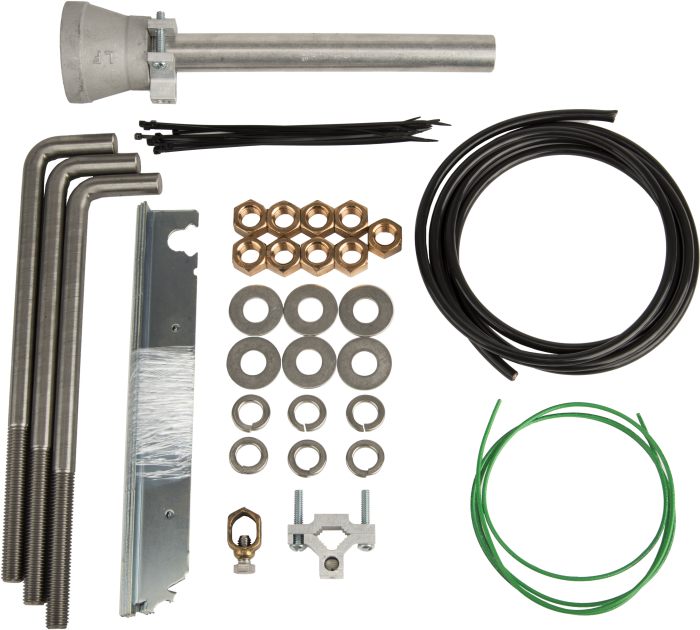

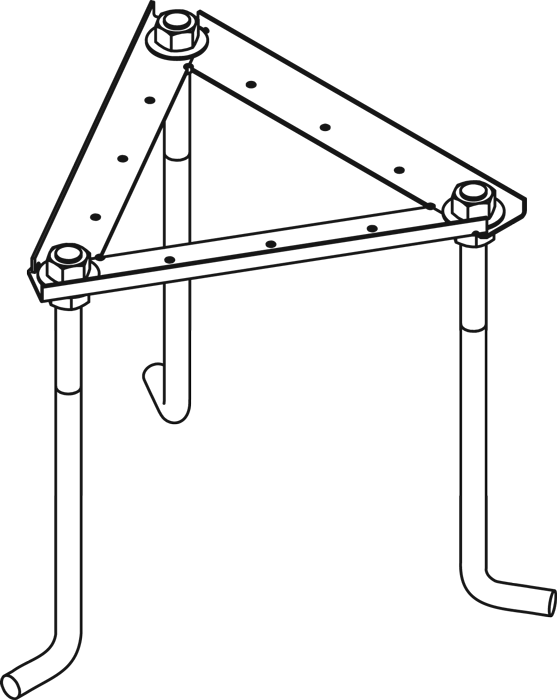

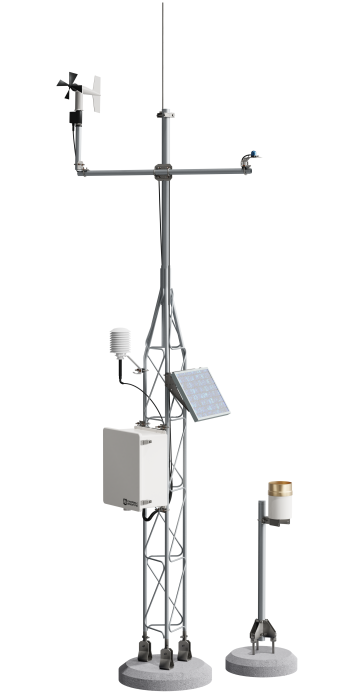

The UT10 is an aluminum, corrosion-resistant tower that provides a 10 ft (3 m) crossarm height. This general-purpose tower supports the attachment of sensors, mounts, solar panels, antennas, and environmental enclosures. The UT10 includes a lightning and grounding rod, grounding cables, grounding-cable clamps, hinged base, and UV-resistant cable ties. A J-bolt kit is used to secure the base to the concrete pad. This kit is ordered as an option, so it can be ordered separately and shipped before the rest of the tower.

Quantity

Overview

Sturdy, long-term instrument mount
Base and grounding kit included

Specification

Material	Hardened drawn 6063-T832 aluminum
Required Concrete Pad Dimensions	61 x 61 x 61 cm (24 x 24 x 24 in.) Concrete pad requirements assume heavy soil; light, shifting, or sandy soils require a larger concrete pad.
Leg Spacing	26 cm (10.25 in.) between legs, center to center
Extendable Mast	1.37 m (54 in.) length that is threaded on one end 4.83 cm (1.9 in.) outer diameter
Pipe Outer Diameter	2.5 cm (1 in.) for vertical 0.953 cm (0.375 in.) for cross support
Crossarm Height (attached to mast)	3 m (10 ft) standard 3.7 m (~12 ft) maximum with mast fully extended 2.7 m (~9 ft) minimum
Height	3 m (10 ft)
Weight	11.8 kg (26 lb)
