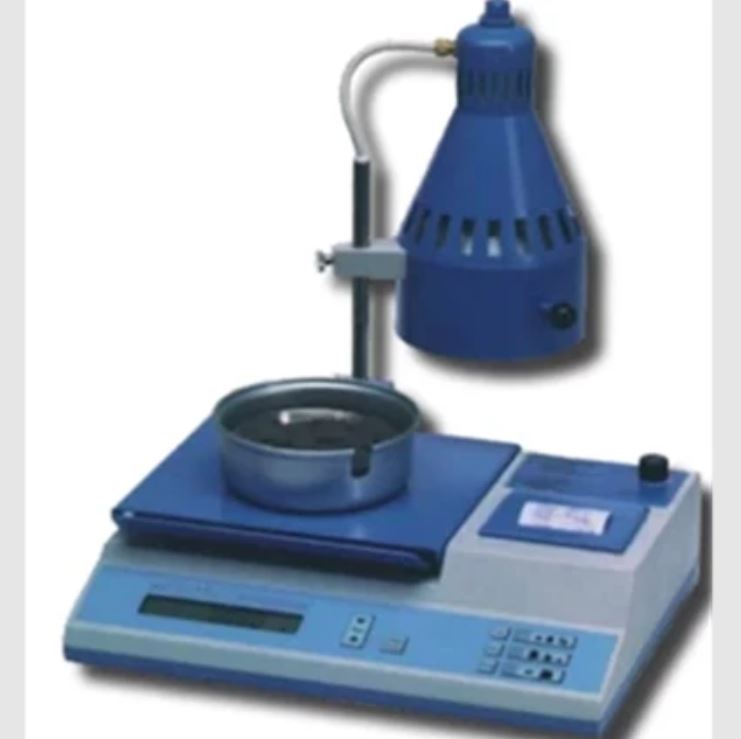

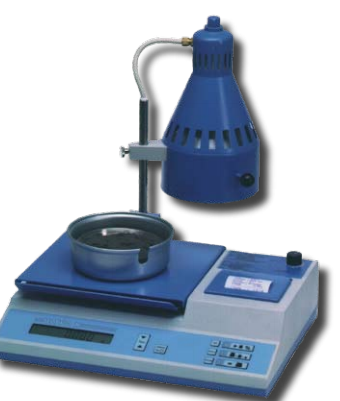

UX2011D Moisture Analyzers

Soil & CropsGeneral Laboratory Equipment

Rugged and accurate sampling for almost all solid and liquid substances. Suitable for laboratory as well as production applications. A micro processor controlled weight loss dehydration method of moisture analysis offers accurate and efficient results. This process uses infrared drying and continuous weight loss measurement.

Quantity

Overview

Easy handling
Pre-heating
Sensitivity adjustment
Cost savings
Elegant and Functional design

Specifications

GENERAL SPECIFICATIONS

WEIGHING RANGE	Selectable 60 / 120 / 310 g
RESOLUTION	0,001 g / 0.002 / 0.005 g
POWER SUPPLY	230 V (115 V with separate transformer) +/- 15%, 48-63 Hz
TIMER	Free programmable 0...90 min. in 10 second steps for time depending drying
DIMENSIONS	360 x 280 x 415 (l x w x h) mm
WEIGHT	Approx. 8,7 kg
TEMPERATURE	Selectable either free variable or with 100 steps range approx. 40...180°C with light heater, or up to 360°C with quartz heater
SAMPLE WEIGHT	Minimum 1 g, recommended minimum 4 g
SAMPLE VOLUME	Max. 95 cm3
