Spectrum Technologies

Vantage Pro 2 Weather Station

ClimateMeteorological Station & Sensors

Vantage Pro2 weather stations are available in both wireless and cabled versions. All include innovative integrated sensor suite, which combines a rain collector, temperature and humidity sensors, and anemometer all into one package -- making setup easier than ever and improving performance and reliability. Switch between metric and U.S. units of measure at the push of a button.

Quantity

Overview

Transmits wirelessly up to 1,000 ft (300 m) outdoors, line of sight. Typical range through walls under most conditions is 200' to 400' (60 to 120 m).
Cabled station includes 100 ft (30 m) cable from console to sensor suite.

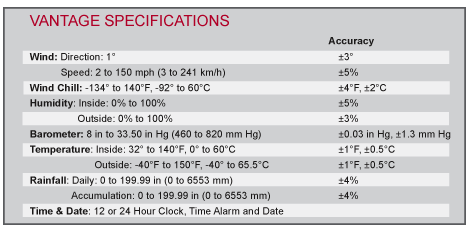

Specification

Operating Temperature	-40° to +150°F (-40° to +65°C)
Non-operating Temperature	-40° to +158°F (-40° to +70°C)
Current Draw (ISS SIM only)	0.14 mA (average), 30 mA (peak) at 4 to 6 VDC
Solar Power Panel	0.5 Watts (ISS SIM), plus 0.75 Watts (Fan-Aspirated)
Battery (ISS SIM /Fan-Aspirated)	CR-123 3-Volt Lithium cell / 2 - 1.2 Volt NiMH C-cells
