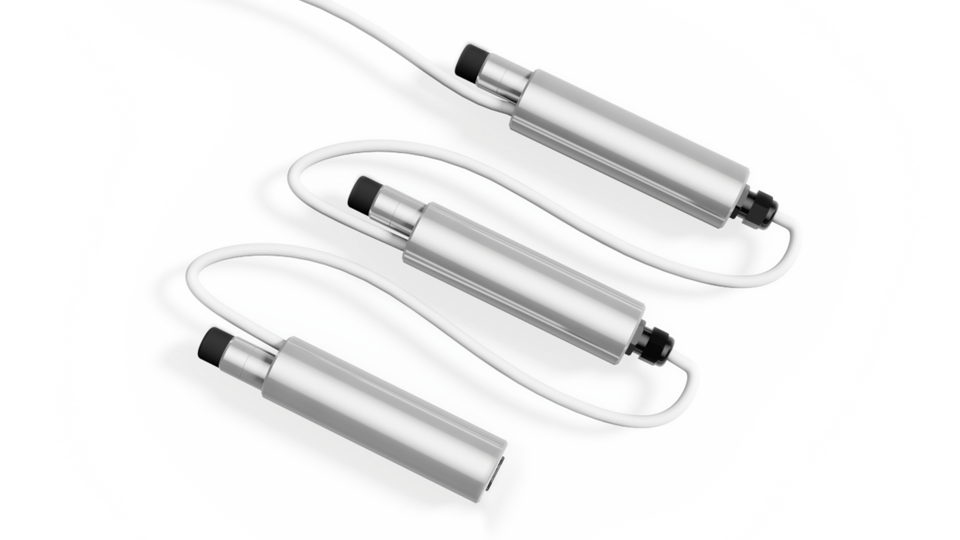

Vibrating Wire And Multipoint Piezometers

InfrastructureGeotechnical Instrumentation

The Vibrating Wire And Multipoint Piezometers also called multilevel piezometers, provide measurements of pore-water pressure at different elevations in the same borehole. Isolation of the pore-water pressure at each elevation is achieved by the fully-grouted installation method. More info.↗

Quantity

Specification

Full scales (FS)	0-350 kPa up to 0-3.5 MPa 0-51 psi up to 0-510 psi
Overpressure	2 x Full Scale
Sensitivity	0.025% FS
Linearity	< ±0.4% FS
Total Accuracy	< ±0.25% FS (< ±0.1% FS on request)
Typical frequency range	2250 - 3000 Hz
Thermal zero shift	0.01÷0.03 % FS /°C
Temp. operating range	-20 to +80 °C
Temperature sensor	built-in thermistor
Material	stainless steel
Diameter and weight	Ø 48.3 mm (19”), 2 kg (4.4 lbs)
