NKE Instrumentation

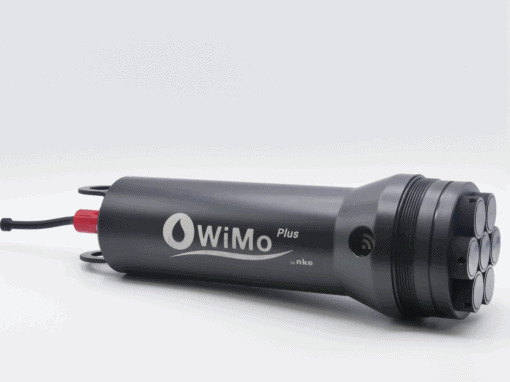

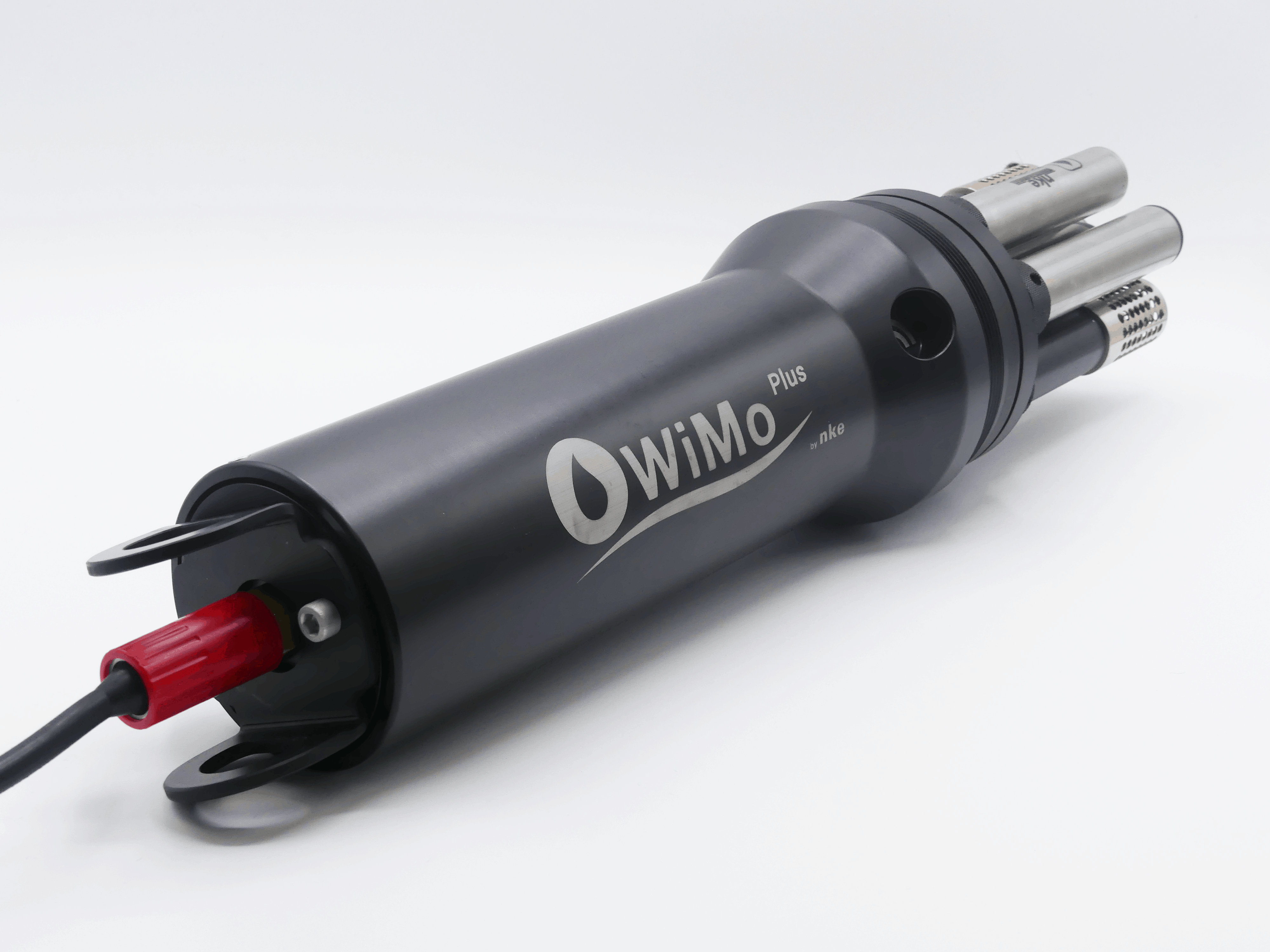

WiMo Plus

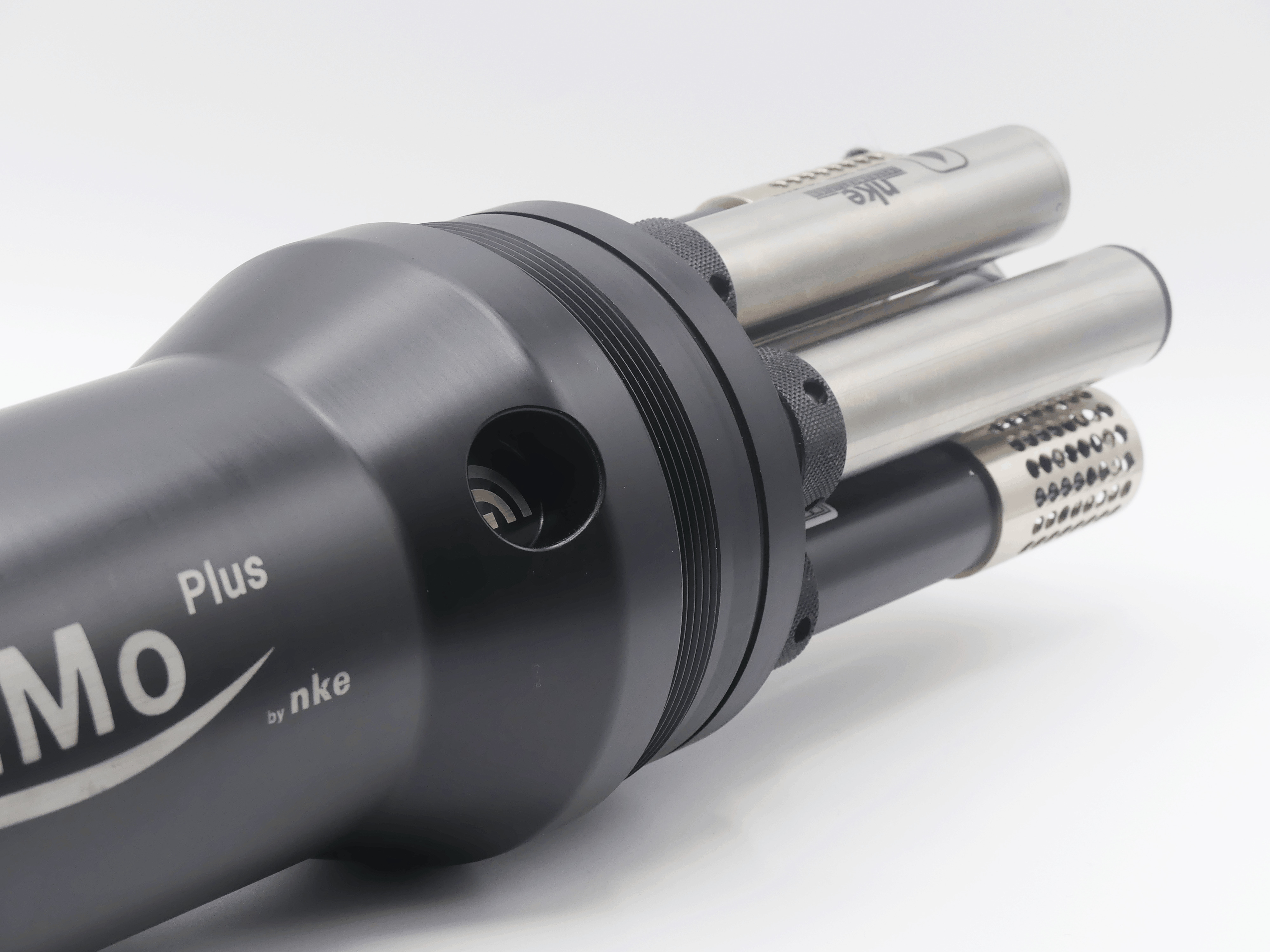

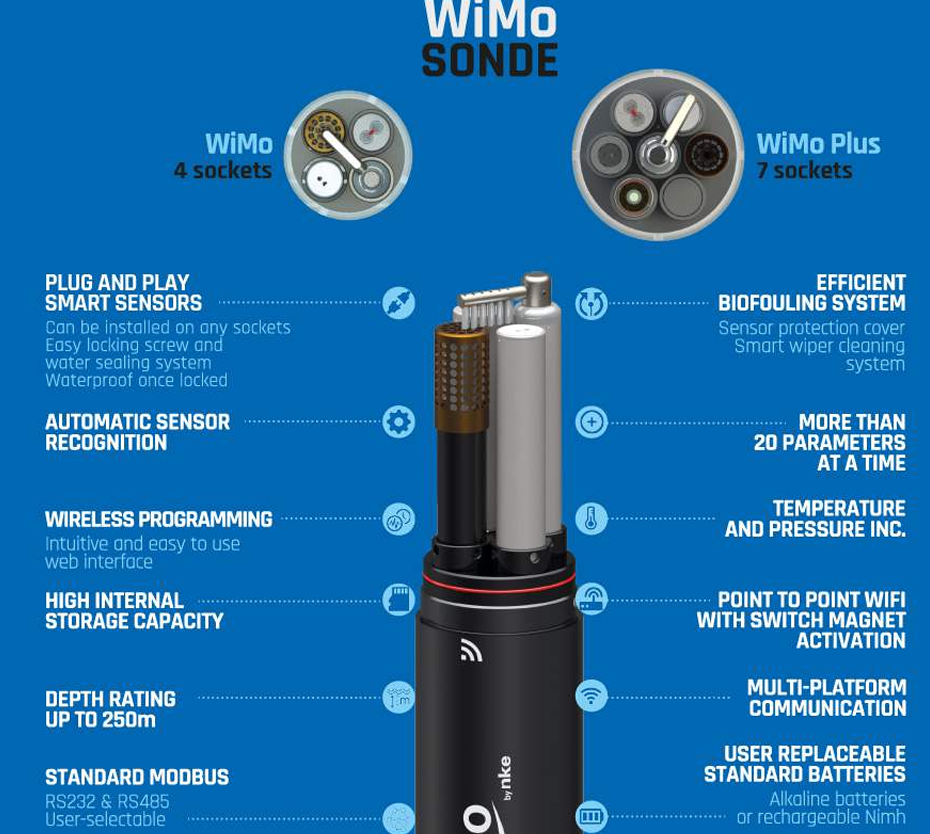

The WiMo Plus can measure up to 20 water parameters synchronously as you can plug up to seven sensors at a time. The WiMo sonde benefits from its smart digital sensor suite including the wiper to maintain the sensors. You can connect and disconnect the sensors whenever and wherever you need even with the functioning sonde on the field.
Features

Specifications
Physical Features |
Mechanical Features |
Transmission |
Temperature |
|
Dimensions Wimo Plus with guard 580 mm |
Maximum depth: 250 m |
Wi-Fi communication Modbus RS232/RS485 (Embedded web interface compatible with all types of platforms) |
Operating temperature -5 °C / +50 °C
|
|
Diameter: 110 mm |
Flash memory: 16 MB (up to 2 million measures*) |
||
| Weight in air: 3.0 kg | Battery: 6 Alkaline batteries D-Type | 3G / 4G |
Storage Temperature -20 °C / +70 °C |
Digital Smart Sensor Suite
Native Parameters |
Range |
Accuracy |
Resolution |
| Temperature | -2 to +35 °C | ±0.2 °C (option) | 0.05 °C |
| Pressure | 0 to 1(option)/3/10/25 bar (s) | ± 0.1 % | 0.0002 bar |
Sensors |
Range |
Accuracy |
Resolution |
| Conductivity (C) | O to 10 mS/cm O to 100 mS/cm |
5 uS or 0.5% of reading 25 us or 0.5% of reading |
1 uS/cm 1 uS/cm |
| Temperature | -2 to +35°C 5 to +50*C (in option] |
±0.02 C ±0.05 C |
0.001 C 0.001 C |
| Turbidity (Tbd) | O to 4000 NTU⁵ | ±2% between 0 and 999 NTU ±5% between 1000 and 4000 NTU |
0.01 NTU |
| Oxygen concentration | 0-23 mg/L (max. 0-44mg/L) | ±0,1 mg/L | 0.01 mg/L |
| Oxygen saturation | 0-250% (max. 0-500%) | ±1% of reading | 0.1% |
| Temperature | O°C to +35°C | ±0.1°C | 0.01°C |
| Fluorescence (Fluo) Chlorophyll A |
O to 500 ppb² | Linearity: r² > 0.99 for Rhodamine WT | 0.03 ppb |
| Fluorescence (Fluo) Phycocyanin |
O to 450/0 to 4500 ppb² | Linearity: r²- 0.99 for Rhodamine WT | 0.1 ppb |
| Fluorescence (Fluo) Phycoerythin |
O to 75/0 to 750 ppb² | Linearity: r² > 0.99 for Rhodomine WT | 0.1 ppb |
| CDOM fDOM | 0 to 150/0 to 1500 ppb QSE³ | Linearity: r² > 0.99 QSE | 0.1 ppb OSE |
| Crude oil | 0 to 1500 ppb⁴ | Linearity: r² > 0.99 | 0.2 ppb |
| Refined fuel | 0 to 2350 ppb¹⁰ | Linearity: r² > 0.99 | 0.2 ppb |
| pH | 0-14 pH units | ±0.1 pH unit | 0.01 pH unit |
| Redox/ORP 6 | -1999 to +1999 mV | ±20 mV | 0.1 mV |
| Nitrate⁶⁻⁸ | O to 300 ppm | 10% of reading or 2 ppm | 0.01 to 1 ppm |
| Ammonium⁶⁻⁸ | 0 - 200 ppm | 10% of reading or 2 ppm | 0.01 to 1 ppm 9 |
| Chloride | 2 to 250 mg/l | 10% of reading or 2 mg/L | 0,001 to 1 mg/L-N |
Downloads
| Brochure-WiMo-enw_5 | DownloadBrochure-WiMo-enw_5 |
|---|
