Gill WindMaster – Capture Every Dimension of the Wind with 3D Precision
- Atmospheric boundary layer measurement
- 3D wind speed and direction sensor
- Wind turbulence measurement instrument
Overview

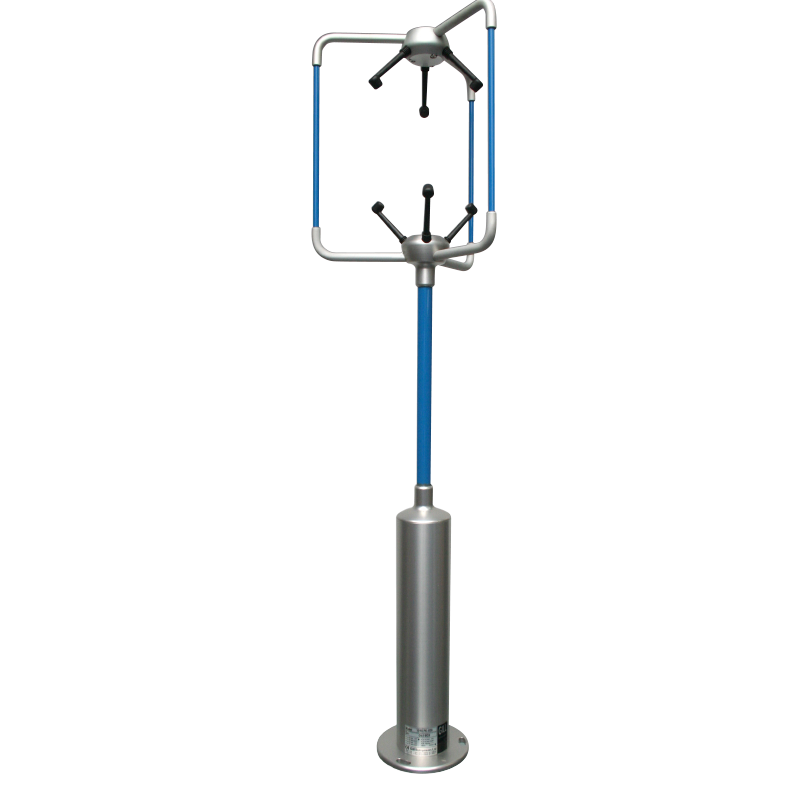

The Gill WindMaster is a high-performance 3-axis ultrasonic anemometer designed to measure wind speed and direction in three dimensions with exceptional accuracy and fast response. Using advanced ultrasonic technology, it provides detailed data on turbulence and airflow dynamics, making it ideal for meteorological research, environmental monitoring, and wind engineering studies. Constructed from lightweight yet durable materials, the WindMaster offers robust performance in all weather conditions and features digital outputs such as RS422 or RS485 for seamless data integration. With its precision measurement capabilities and rugged design, the WindMaster is trusted by researchers and professionals who require accurate 3D wind analysis in demanding environments.
Key Features
- Precision 3-axis sonic anemometer
- 20Hz output rate
- 0 m/s wind speed
- 0-360° wind direction
- U, V, W vector outputs
- Sonic temperature output
- Aluminium/Carbon fibre construction
- Optional custom calibration
Typical Applications
- Power Lines
- Bridges
- Viaducts
- Building ventilation control systems
- Measurement Masts
- Skyscrapers
- Wind Turbine Test Sites
- Meteorological & Flux measurement sites
Specifications
WIND SPEED |
|
| Range | 0 - 50 m/s |
| Accuracy* |
<1.5% RMS @12 m/s |
| Resolution | 0.01 m/s |
| Accuracy* | <1% RMS @12 m/s (Custom) |
DIRECTION |
|
| Range | 0 - 360° |
| Accuracy |
2° @12 m/s |
| Resolution |
0.1° |
| Accuracy | 0.5° @12 m/s (Custom) |
SONIC TEMPERATURE |
|
| Range |
-40°C to +70°C |
| Resolution | 0.01°C |
| Accuracy | -20°C to +30°C within ±2°C of ambient temperature |
SPEED OF SOUND |
|
| Range |
300-370 m/s |
| Resolution |
0.01 m/s |
| Accuracy |
< ±0.5% @ 20°C |
MEASUREMENT |
|
| Internal sample rate 20 Hz or 32 Hz | 20 Hz or 32 Hz |
| Output Parameters |
1, 2, 4, 8, 10, 16, 20 & 32 (Option) Hz |
| Units of Measure |
m/s, mph, kph, knots, ft/min |
| Formats | UVW or Polar |
DIGITAL OUTPUT |
|
| Communication |
RS232, 422, 485, Binary |
| Baud Rates | 2400 - 57600 |
| Format | ASCII |
ANALOGUE OUTPUTS - OPTIONAL |
|
| Resolution 12 bits or 14 bits | 4 channels available |
| Selectable Range | User selectable full scale wind speed |
| Output type | 0-20mA, 4-20mA, 0-5 V, ±2.5 V, ±5 V |
ANALOGUE INPUTS - OPTIONAL |
|
| Resolution 12 bits or 14 bits | Up to 4 single ended or 2 differential |
| Input Type | ±5 V |
POWER REQUIREMENT |
|
| Anemometer | 9-30 VDC (55mA @ 12 VDC) |
MECHANICAL |
|
| Weight | 1.0 kg |
| Size | 750mm x 240mm |
ENVIRONMENTAL |
|
| Protection Class | IP65 |
| Operating Temp | -40°C to +70°C |
| Humidity | < 5% to 100% RH |
| Precipitation | 300mm/hr |
| EMC | BS EN 61000 - 6 - 3 (Emissions) BS EN 61000 - 6 - 2 (Immunity) |

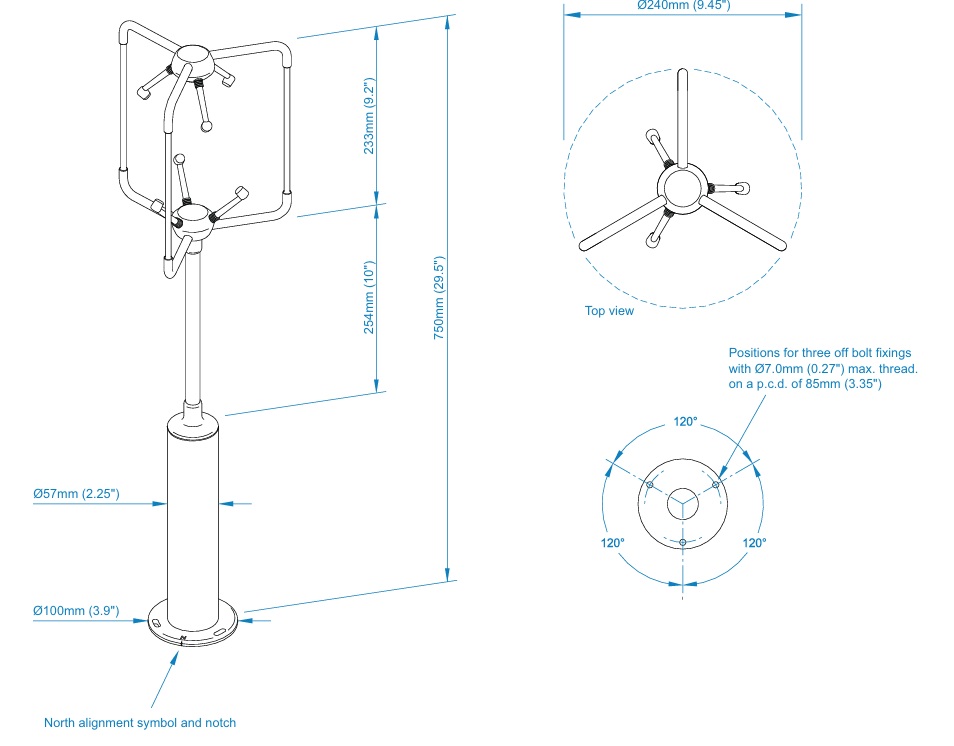

Drawing
Downloads
| WindMaster-iss7-Datasheet | DownloadWindMaster-iss7-Datasheet |
|---|
