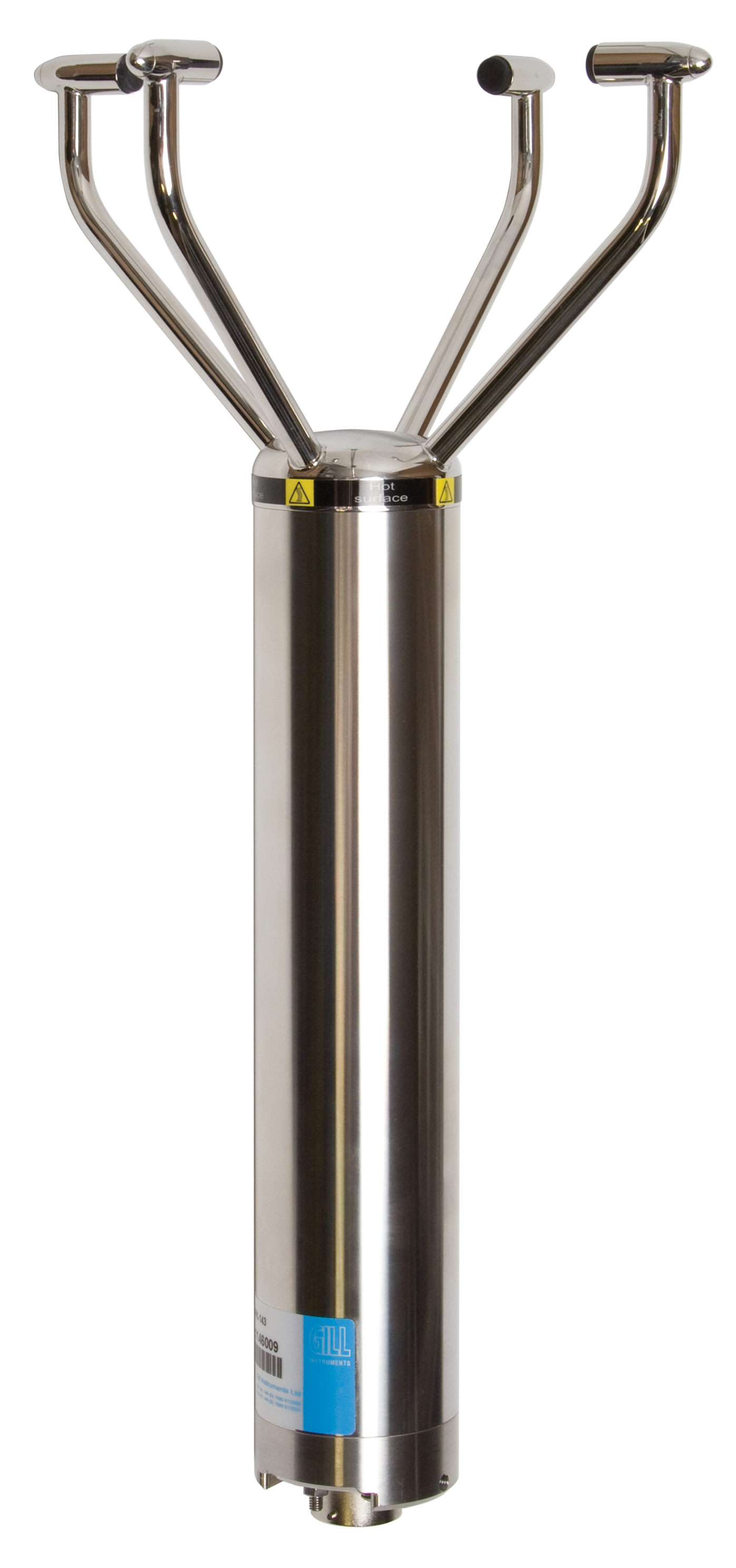

WindObserver 70

The WindObserver 70 is a rugged, heated, solid-state ultrasonic anemometer designed especially for aviation and extreme environments. It has a wind speed range from 0 to 70 m/s and delivers full 360° wind direction with no dead band, high precision (≈ ±2% at 12 m/s for speed, ±2° for direction), and fine resolution (≈ 0.01 m/s; 1°).  It is built with stainless steel 316 housing, rated IP66 for harsh outdoor exposure, and offers an enhanced anti-icing heating system (≈ 150 W head heating) to ensure operation in icing conditions and down to approx −55 °C.  DC power is required (≈9-30 V) with optional heating (7 A @ 24 VAC or DC), and it supports output formats via RS-422/RS-485 with selectable baud rates, status reporting, and configurable output formats (NMEA, UV, Polar, etc.).  The unit comes with aviation certifications from FAA & CAA for use in reporting surface winds under AWOS systems, minimal maintenance (no moving parts) and optional WMO-style averaging/gust measurement capabilities.

• Heating power 7A @24VAC or DC (1W/cm2)
• 0-70m/s wind speed range
• FAA & CAA accepted* for airport applications
• Calibration traceable to national standards
• IP66 rated stainless steel construction
• Optional base mounts/cable exit
• 0-360º wind direction range (no dead band)
• Averaging/gusts to WMO guidelines

• Aviation Weather Observing Systems
• Aircraft Landing Systems
• Remote Meteorological Systems
• Helicopter Landing Pads
• Transport Safety
