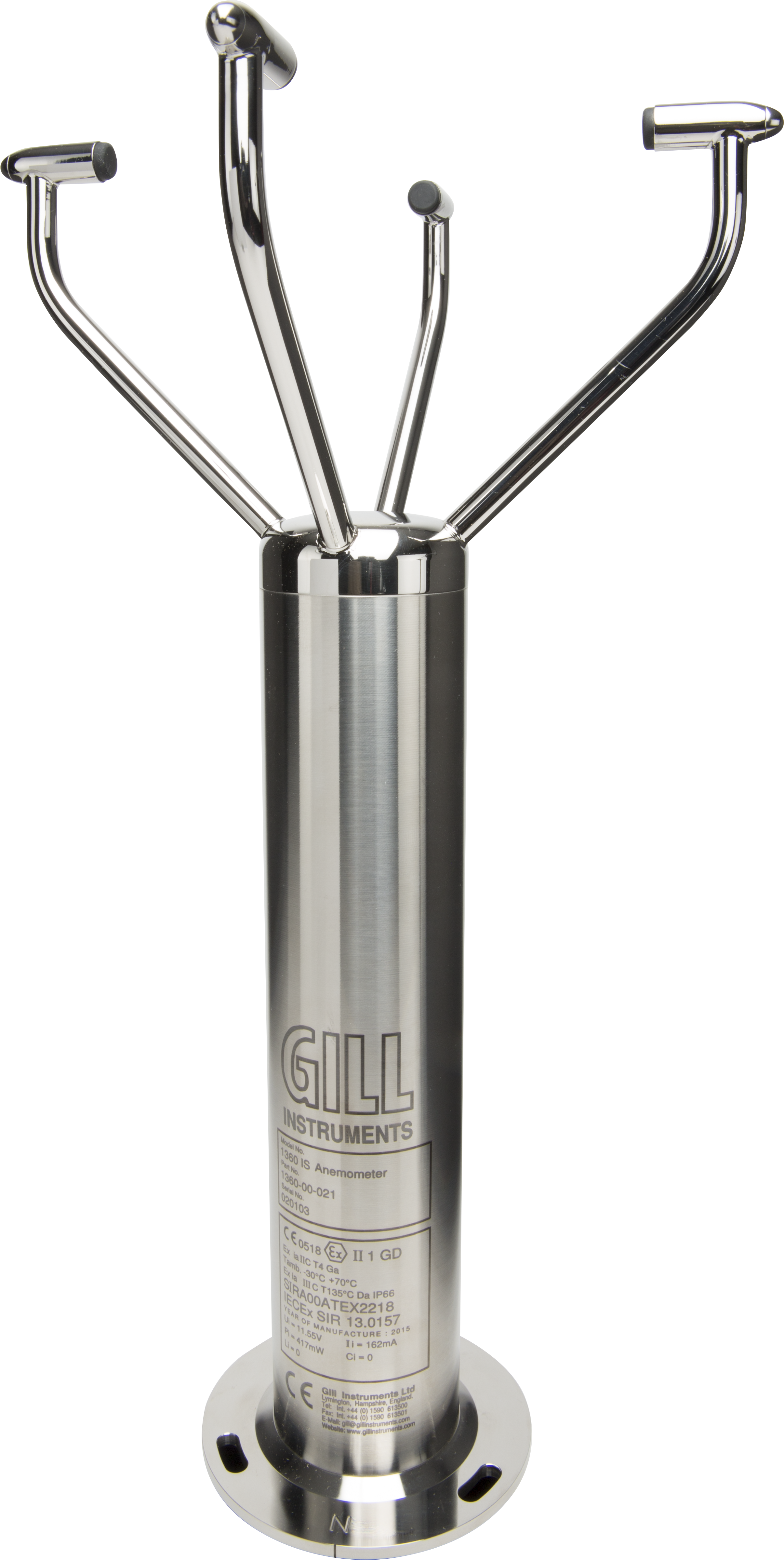

Gill WindObserver IS – Intrinsically Safe Ultrasonic Wind Sensor for Hazardous Areas

Explosion-proof wind sensor
Solid-state wind sensor IS version
Wind sensor for ATEX Zone 1 and Zone 2

Quantity

Overview

The Gill WindObserver IS is an intrinsically safe ultrasonic wind sensor specifically designed for accurate and reliable wind measurement in hazardous or explosive environments. Built with 316 stainless steel and certified to ATEX and IECEx standards, it provides safe operation in areas such as offshore platforms, petrochemical sites, and industrial zones with flammable gases. The sensor measures both wind speed and direction with no moving parts, reducing maintenance needs and improving long-term performance. With its IP66-rated housing, optional heating system, and digital output options like RS422 and RS485, the WindObserver IS delivers dependable data in extreme weather and safety-critical applications. It is the ideal choice for industries that demand durability, precision, and explosion-proof certification in one compact device.

Key Features

Intrinsically safe: ATEX, IECEx & UKEX certification
Low voltage or optional mains power supply
Galvanic isolation
ASCII or NMEA serial output
0-75m/s wind speed operation
Averaging/gusts to WMO guidelines
Tested for exposed environments (IP66, BS EN 60945)
Low maintenance requirements.

Typical Applications

Offshore oil production and drilling platforms
Support tankers
Onshore petrochemical plants
Helidecks in hazardous environments
Paint spray booths

Benefits

Precision wind speed and direction measurement in hazardous environments
Reduced offshore maintenance costs
Easy to install and long operational life
Proven service internationally

Specifications


WIND SPEED
Range	0-75 m/s
Accuracy	12 m/s 2% RMSE
Resolution	0.01 m/s
Starting Threshold	0.01 m/s
Units of measurement	m/s, km/h, mph, kts, ft/min

WIND DIRECTION
Range	0 - 360°
Units of measurement	degrees
Accuracy	±4° RMSE
Resolution	1°

MEASUREMENT
Ultrasonic output rate	1 Hz, 2 Hz or 4 Hz
Parameters	UV and polar
Units	m/s, knots, mph, km/h, ft/min
Averaging	0-3600 seconds

OUTPUT
Digital comms modes??	RS422, full duplex to LVPCI
Baud rates	1200, 2400, 4800, 9600, 19200
Formats	8-bit data; odd, even or no parity
Anemometer status	Supplied as part of standard Gill message (NMEA output includes V and A codes as part of the message)
Protocols	ASCII, NMEA 0183
