Gill Instruments

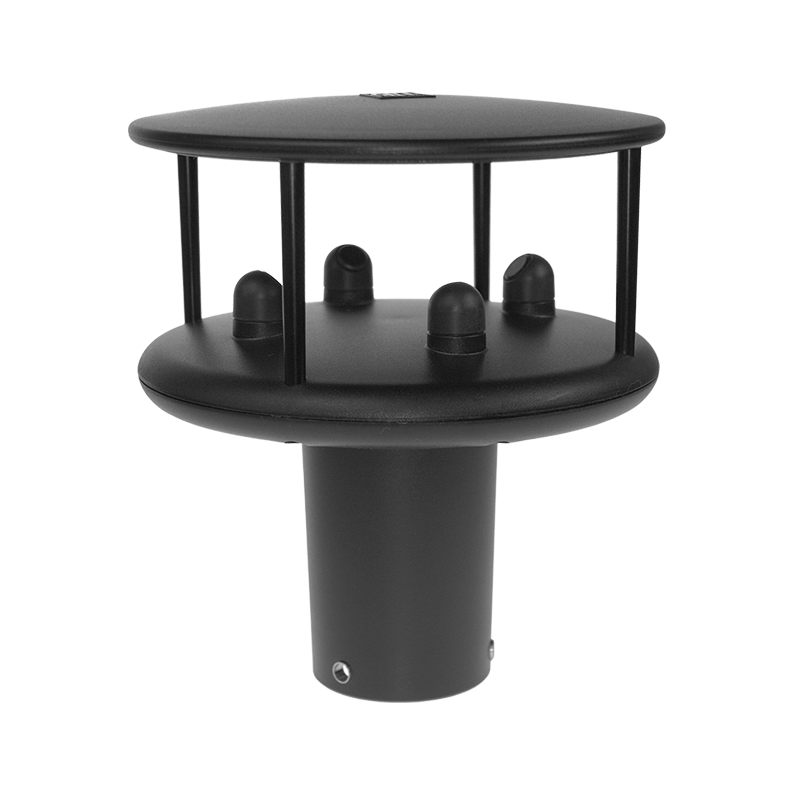

WindSonic 75
WindSonic ultrasonic anemometers offer high accuracy, low-cost wind measurement
- Industrial / infrastructure wind sensor (bridges, tunnels)
- Renewable energy site wind sensor
- Best ultrasonic anemometer for storm gust measurement
Overview
The Gill WindSonic 75 is a rugged 2-axis ultrasonic wind sensor designed to measure wind speed (0–75 m/s) and direction (0–360°) accurately without any moving parts, making it durable and maintenance-free. Built with a corrosion-resistant polycarbonate housing and rated IP66, it operates reliably in harsh environments such as marine, coastal, and industrial sites. The sensor supports multiple communication outputs—RS232, RS422, RS485, NMEA, Modbus, and optional analogue (0–5 V or 4–20 mA)—for easy integration into weather monitoring or control systems. With fast response time, high accuracy (±2 %), and a wide operating temperature range (−35 °C to +70 °C), the WindSonic 75 is ideal for professional meteorological, renewable energy, and environmental monitoring applications requiring robust, high-performance wind measurement.
Typical applications
- Remote weather monitoring stations
- Building controls
- Data buoys
- Marine vessels
- Small airports & helipads
- Road & rail tunnels
- Environmental field sites
- Ports & harbours
- Mobile weather monitoring vehicles
- Coastal weather monitoring stations
Key Features
- Wind speed & direction sensor
- 0-75 m/s (146 knots) wind speed
- 0-360º wind direction
- WMO-compliant gust wind speed and direction calculated from a rolling average
- NMEA output
- Low power consumption
- Fast start-up
- Solid-state ultrasonic technology - no moving parts y Corrosion free
Benefits
- High accuracy, low-cost wind measurement
- Excellent, well proven reliability
- Low maintenance delivers low cost of ownership
- Models and outputs to suit varied applications
Specifications
WIND SPEED |
|
| Range | 0 -75 m/s (146 knots) |
| Accuracy |
2% RMSE @12 m/s |
| Resolution | 0.01 m/s (0.02 knots) |
| Response time | 0.25 seconds |
| Starting threshold | 0.01 m/s |
WIND DIRECTION |
|
| Range | 0 - 360° (no dead band) |
| Accuracy |
2° RMSE @12 m/s |
| Resolution |
0.1° Option 1,2 & 3 (output at 0, 1 or 2 decimal places) 0.1° Option 5 |
| Response time | 0.25 seconds |
OUTPUTS |
|
| Option 1 interface |
RS232 |
| Option 2 interface |
RS232, RS422, RS485** |
| Option 3 interface | RS232, RS422, RS485** Analogue 0-5 V or 0-20 mA or 4-20 mA |
| Option 1, 2 & 3 proto cols | ASCII, NMEA 0183 |
| Option 5 | Modbus RTU, 2-wire RS-485 |
| Baud Rate | 2400 to 38400 |
POWER REQUIREMENT |
|
| Anemometer |
12-30 VDC Option 1, 2 & 3 9-30 VDC Option 5 |
| Current drain |
Dependent on option selected e.g. < 2 mA @ 12V (SDI-12) to 44 mA @ 12V (4-20 mA) Refer to manual for further advice Startup time < 5 seconds |
MECHANICAL |
|
| External construction | LURAN S KR 2861/1C ASA/PC |
| Size | 142 mm x 163 mm |
| Weight | 0.5 kg |
ENVIRONMENTAL |
|
| Protection class | IP66 |
| Operating temp. |
-35°C to +70°C |
| Storage temp. | -40°C to +80°C |
| Operating humidity | < 5% to 100% RH |
| RH Precipitation | 300 mm/hr |
ACCESORIES |
|
| Pipe mounting (optional) 44.45 mm (1.75 in) diameter | 44.45 mm (1.75 in) diameter |
| Wind software | Display / logging* |
| Cables (optional) | Available to match output options |
| Display (optional) | See Gill Display datasheet |
MEASUREMENT |
|
| Ultrasonic output rate | 0.25, 0.5, 1, 2 or 4 Hz |
| Parameters | Wind speed & direction or U and V (vectors) |
| Units of measurement | m/s, knots, mph, kph, ft/min |
| Anemometer status | For unit diagnostics |
OPERATIONAL |
|
| Warranty | 24 months |
| Factory calibration | Traceable to National Standards |

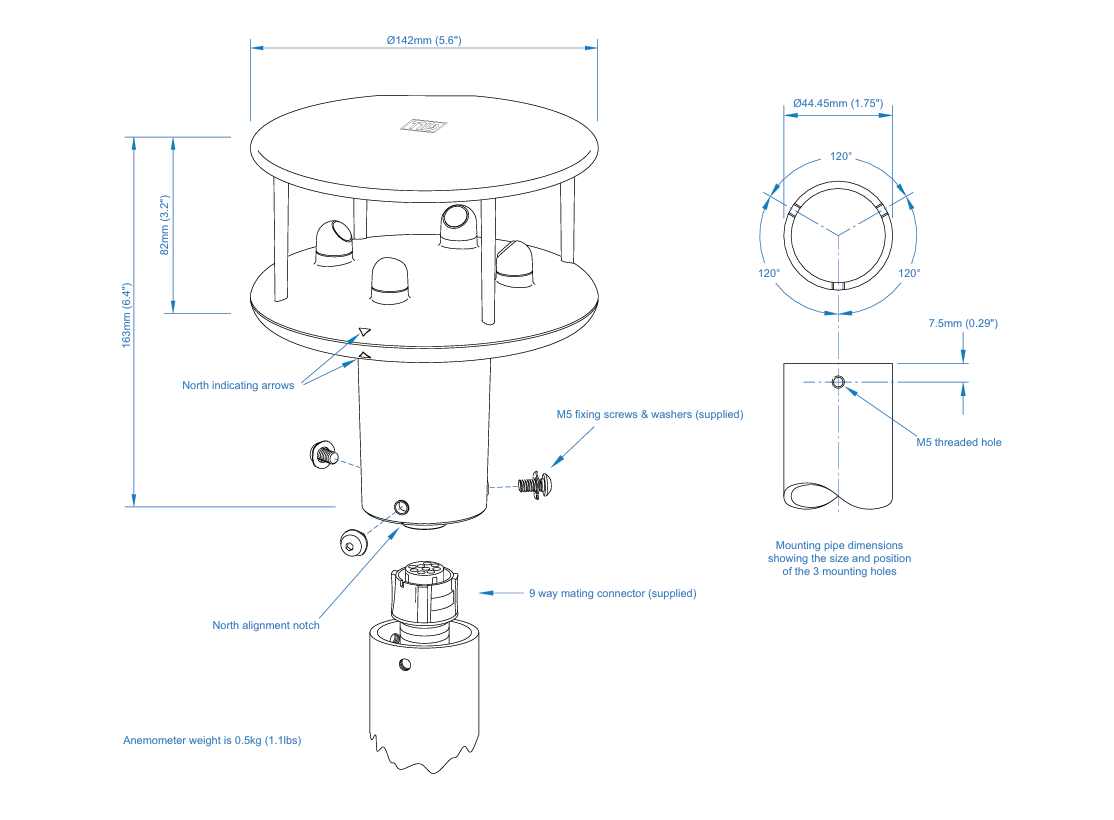

Drawing
Downloads
| 1405-0035-WindSonic75-issue-9 | Download1405-0035-WindSonic75-issue-9 |
|---|
