WindSonic M

ClimateMeteorological Station & Sensors

WindSonic ultrasonic anemometers offer high accuracy, low-cost wind measurement

Ultrasonic 2-axis wind sensor aluminium body
Low-maintenance wind direction and speed sensor
IP66 marine wind sensor NMEA output

Quantity

Overview

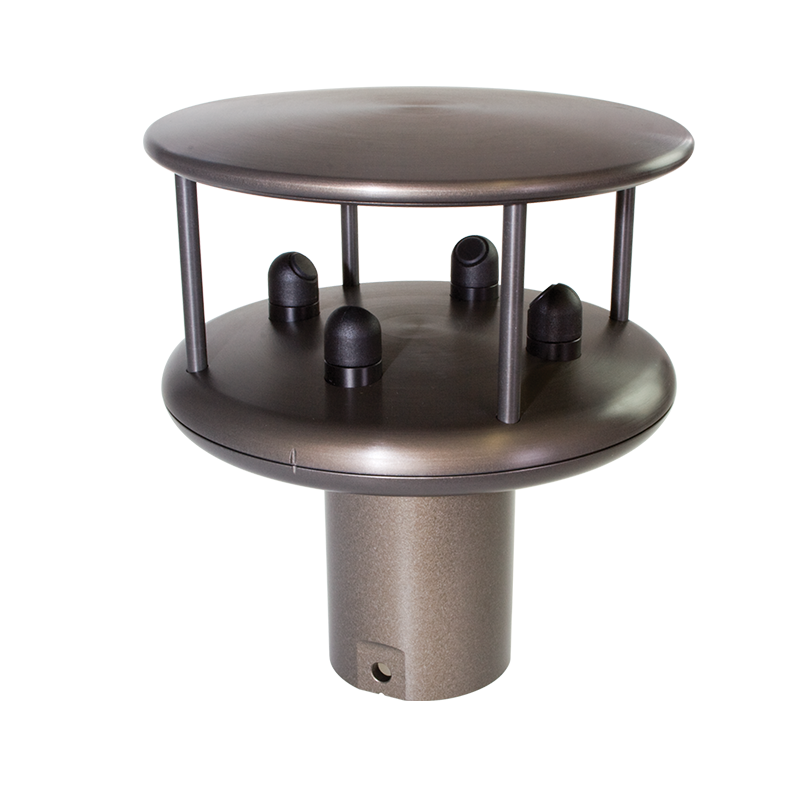

The Gill WindSonic M is a durable ultrasonic wind sensor designed to measure both wind speed and direction accurately without any moving parts. Built with a robust hard-anodised aluminium housing, it offers long-term reliability in harsh and marine environments. The sensor measures wind speeds up to 60 m/s and provides full 360° directional data, supported by multiple digital and analogue output options for easy system integration. With its solid-state design, IP66 weather protection, and optional heating for operation in extreme cold, the WindSonic M delivers dependable performance with minimal maintenance—ideal for meteorological, coastal, and industrial monitoring applications.

Typical applications

Remote weather monitoring stations
Building controls
Data buoys
Marine vessels
Remote airports & helipads
Road & rail tunnels
Environmental field sites
Ports & harbours
Mobile weather monitoring vehicles
Coastal weather monitoring stations

Key Features

Wind speed & direction sensor
Hard anodized aluminum alloy construction
-40°C operation (with optional heating)
Vibration BS EN 60945: 2002
Impact resistance to UL2218 Class 1
0-60 m/s (116 knots) wind speed
0-360º wind direction
WMO-compliant gust wind speed and direction calculated from a rolling average
NMEA output
Solid-state ultrasonic technology - no moving parts
Analogue output (optional)

Benefits

High accuracy, low-cost wind measurement
Excellent, well proven reliability
Low maintenance delivers low cost of ownership
Models and outputs to suit varied applications
Rapid heating (option) for extreme low temperature applications

Specifications


WIND SPEED
Range	0 -60 m/s (116 knots)
Accuracy	2% RMSE @12 m/s
Resolution	0.01 m/s (0.02 knots)
Response time	0.25 seconds
Starting threshold	0.01 m/s

WIND DIRECTION
Range	0 - 360° (no dead band)
Accuracy	2° RMSE @12 m/s
Resolution	0.1° (output at 0, 1 or 2 decimal places)
Response time	0.25 seconds

OUTPUTS
Digital	RS232, RS422, RS485**
Analogue (optional)	0-5 V or 0-20 mA or 4-20 mA
Protocols	ASCII, NMEA 0183
Option 5	Modbus RTU, 2-wire RS-485
Baud Rate	2400 to 38400

POWER REQUIREMENT
Anemometer	5-30 VDC non-analogue (5.5 mA @ 12 V) 7-30 VDC analogue (9-44 mA @ 12 V)
Optional heating ***	24 V AC/DC (4.2 A @ 24 V)
Analogue outputs	Current consumption increases if analogue output is selected. Add up to 40 mA to nominal power consumption above Startup time < 5 seconds

MECHANICAL
External construction	Al Alloy 6061 T6
Finish	Hard anodized

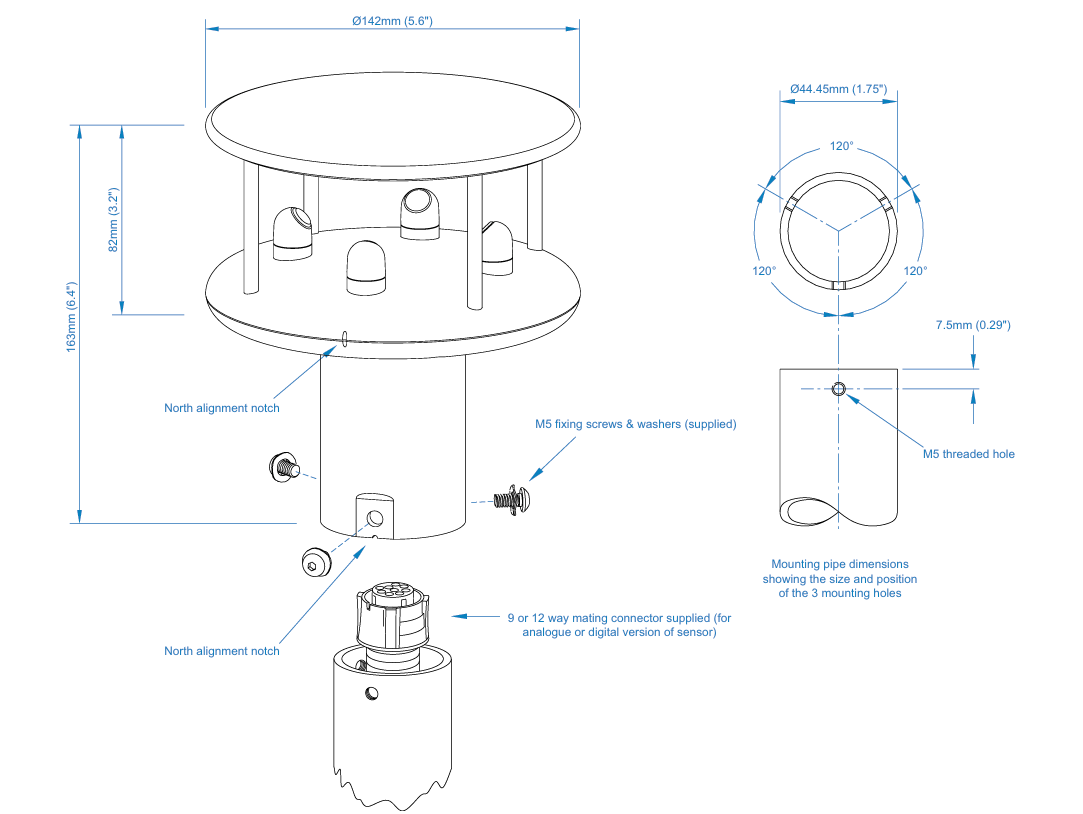

Size	142 mm x 163 mm
Weight	0.9 kg

ENVIRONMENTAL
Protection class	IP66 BS EN 60529: 1992
Operating temp.	-40°C to +70°C (with heating)-35°C to +70°C (without heating)
Storage temp.	-40°C to +80°C
Operating humidity	< 5% to 100% RH
Precipitation	300 mm/hr
Impact resistance	UL2218 Class 1
Compass safe distance	BS EN 60945: 2002 Section 11.2
Vibration	BS EN 60945: 2002

ACCESORIES
Pipe mounting (optional) 44.45 mm (1.75 in) diameter	44.45 mm (1.75 in) diameter
Wind software	Display / logging*
Cables (optional)	Available to match output options
Display (optional)	See Gill Display datasheet

MEASUREMENT
Ultrasonic output rate	0.25, 0.5, 1, 2 or 4 Hz
Parameters	Wind speed & direction or U and V (vectors)
Units of measurement	m/s, knots, mph, kph, ft/min
Anemometer status	For unit diagnostics
