06.15 SA Penetrologger

Soil & CropsIn-Situ Soil Physical Research

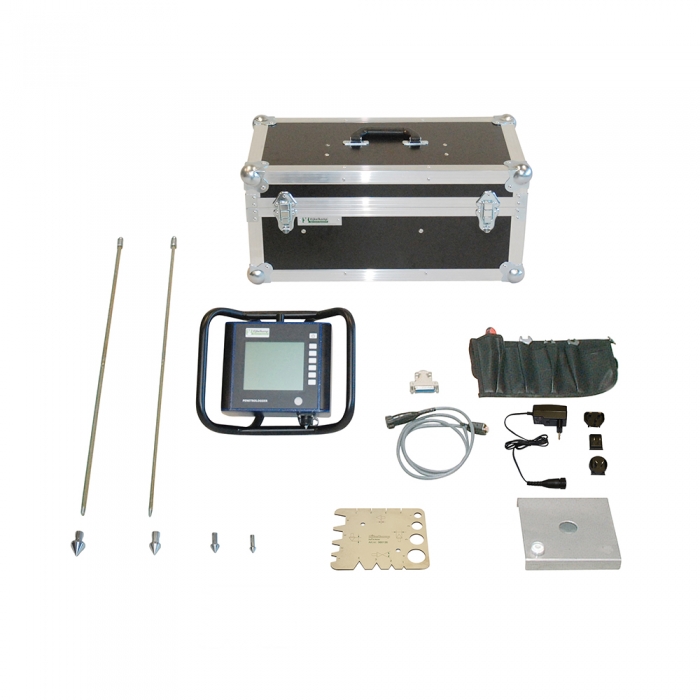

The penetrologger is a versatile instrument for in situ measurement of the resistance to penetration of the soil. The cone is screwed on the probing rod, which is connected with a quick coupling to the force sensor on the penetrologger. Now the cone is pushed slowly and regularly into the soil. The depth reference plate, which is on the soil surface, reflects the signals of the ultrasonic sensor, which results in a very accurate depth measurement.

Quantity

Benefits

No mechanical parts, strong and reliable
Incorporated fast GPS. Data are auto-stored
Soil moisture indicator can be connected
Record one moisture % per measurement
Moisture recordings allow comparing of data
500 fully digital depth / force recordings
Numerous different projects can be defined
Projects can be selected at any moment

Specifications

GENERAL SPECIFICATIONS

Angle of cone	60 °
Cone surface range	1, 2, 3.3, 5 cm²
Data output	.txt, other
Data storage capacity	1500
International Protection Rating	54
Maximum measuring depth	0.80 m
Measured parameters	penetration resistance
Measuring range	0...10000 kPa
Data plug type	RS232
