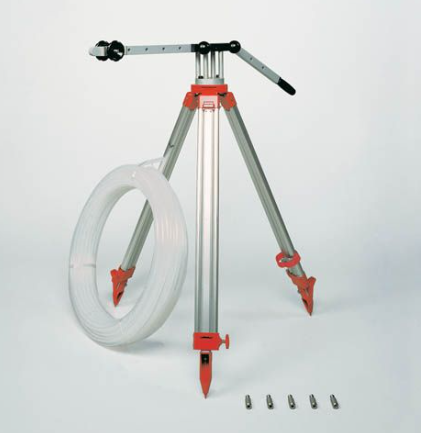

12.13 Hand-Operated Foot Valve Pump

Two tubes, with a diameter of 10 or 16 mm, can be fitted on the hand-operated foot valve pump. The lever hinges on a tripod of which the height can be adjusted. In this way it is possible to take samples from wells fitted with a shaft type well cover as well as street type well covers. The hinge point of the lever can be moved quickly, in this way the stroke lever ratio can be adjusted which makes it possible to work efficiently at all times. The advantage of the lever is that it reverses the weight of the water filled tubes so that you need not carry the weight; on the contrary, your arm will be lifted slightly. This way pumping is little effort and can be sustained much longer. You can stand upright during the operation.
