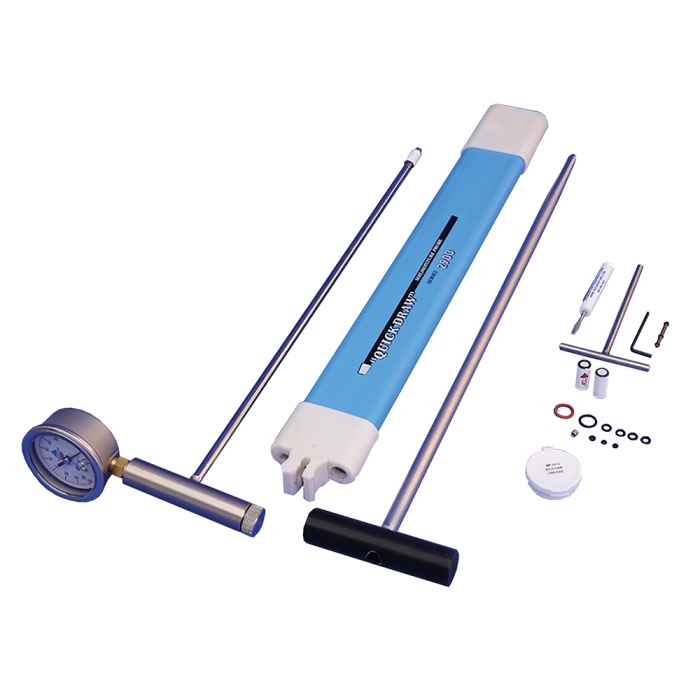

14.04.05 Quickdraw Tensiometers
Soil & CropsSoil Moisture Measuremnt
The 14.04.05 quick draw tensiometer is a small tensiometer that can easily be moved and, using the auger for pre-drilling, placed into the soil. The small diameter and the super porous ceramic cup and the possibility of pre-setting the tension, allow a measuring period of only a few minutes. After each measurement, the tensiometer can be stored in a carrier cylinder in which it is kept humid allowing immediate use in case of a next measurement.
Quantity
1
Specification
| Maximum measuring depth | 30 or 45 cm |
|---|---|
| Measuring range | 0...850 hPa |
| Measuring accuracy | ± 2.5 hPa |
| Porous material (cups) | ceramic |
| Reading accuracy | 2% |
| Registration type | manual |
| Volume of material needed | 10 ml |
