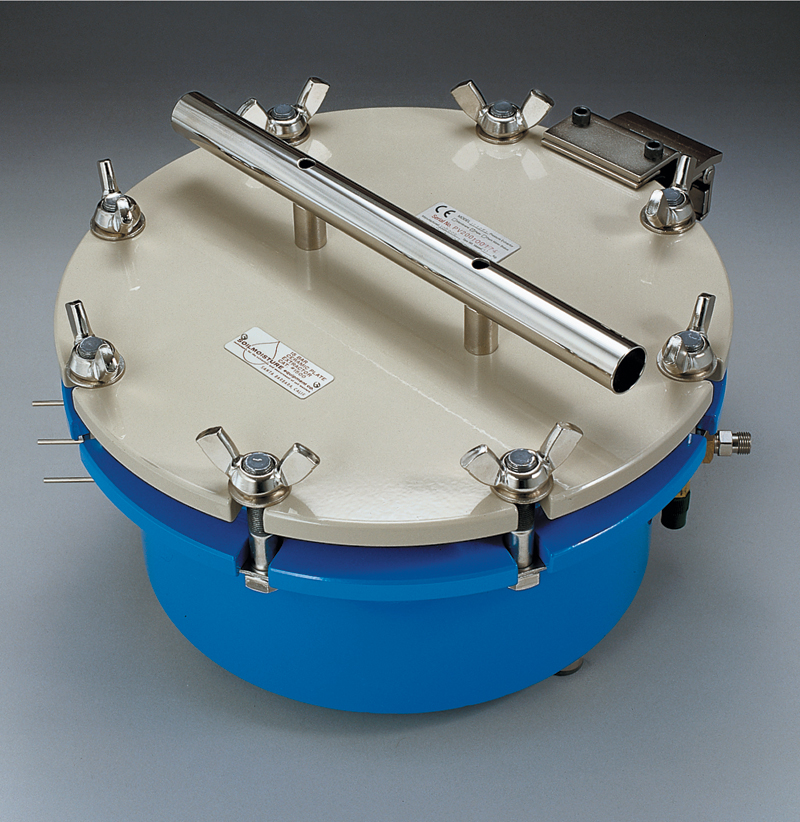

15 Bar Ceramic Plate Extractor Only, 4 Cell Capacity thumbnail 1

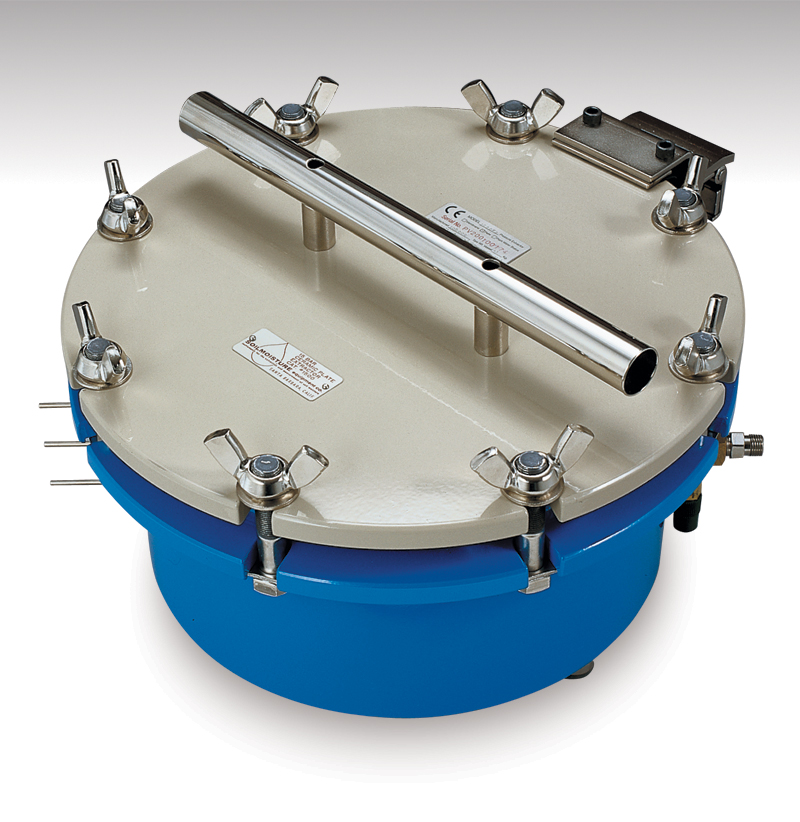

15 Bar Ceramic Plate Extractor Only, 4 Cell Capacity thumbnail 2

Soil Moisture

15 Bar Ceramic Plate Extractor Only, 4 Cell Capacity

Soil & CropsSoil Moisture Measuremnt

Soil Moisture 15 BAR CERAMIC PLATE EXTRACTOR.

Quantity
1

Overview

  • The 1500F2, 15 Bar Pressure Plate Extractor,
  • is used to analyze the water-holding characteristics of soil samples throughout the pressure range of interest in most agricultural applications.
  • The pressure vessel is 4in (10 cm) deep and has an inside diameter of 12in (30 cm).
  • Up to 4 ceramic plates can be accommodated at one time, allowing approximately 36 2-1/4in samples to be analyzed simultaneously.
  • The Pressure Plate Extractor consists of a pressure vessel and lid, clamping bolts, O-ring seals, and outflow tube assemblies.

Specifications

Pressure Range 0-15 bars.
Pressure Vessel inner diameter 12in, depth: 4&in
Number of Samples approximately 36, 2.25" diameter samples.
Weight 97 lbs
Shipping dimensions 19in X 19in X 16in
