5532 I-Penetrometer (Digital Cone Penetrometer)

Soil & CropsIn-Situ Soil Physical Research

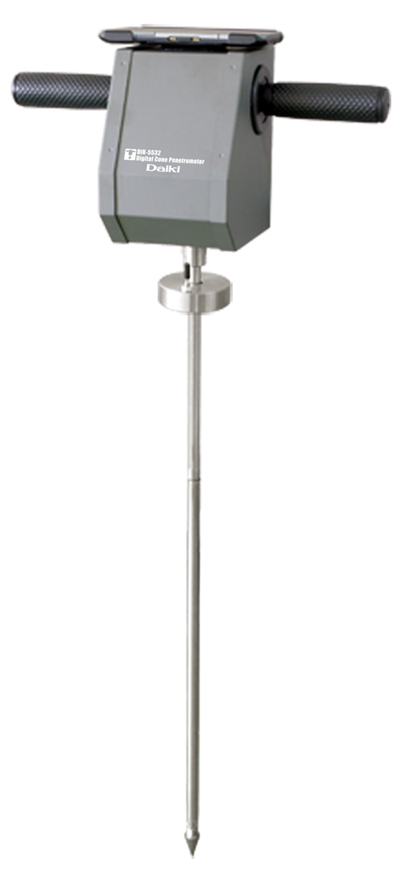

DIK-5532 Digital Cone Penetrometer measures a soil compaction in situ easily and it comes with Bluetooth communication.

Quantity

Overview

・Built-in GPS Display can measure and save data of maximum 1000 measurements.
・Built-in data logger and battery, integrated style!

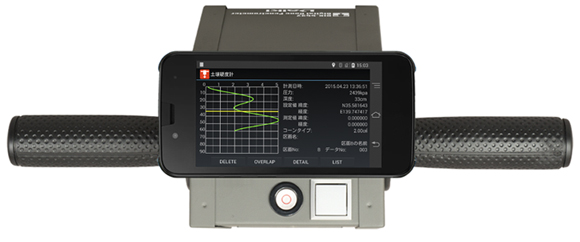

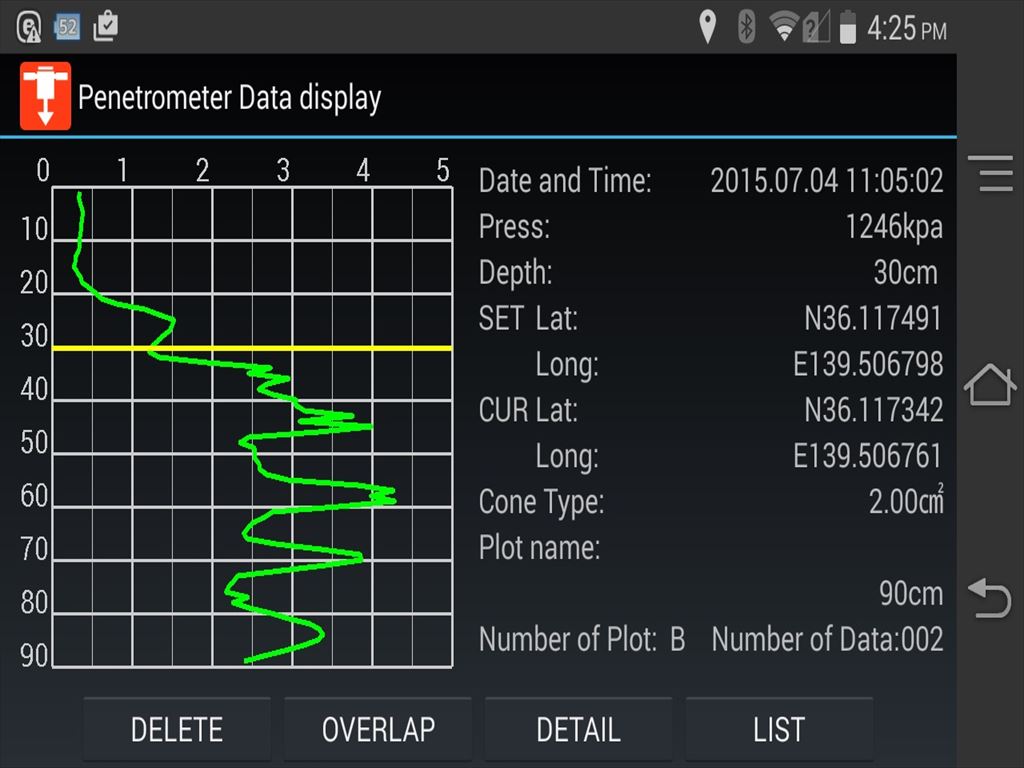

・Easily obtaining of measurement data and setting of measurement condition by Data display.
・Printing with a wireless printer.
・This product can be measured at a constant speed by displaying an indication of penetration rate.

Specifications

GENERAL SPECIFICATIONS

Power source	size C battery 2 pieces
Dimension	345mm x 212mm x 144mm (including handle) (Except spindle, Data display, cone)
Weight	Approx. 4kg
Measurement range	Cone base area(2cm²) x Measurement Depth(cm) : Measurement range(kPa) cone 2cm² x 30cm : 179 ~ 4903 cone 2cm² x 60cm : 191 ~ 4903 cone 2cm² x 90cm : 204 ~ 4903
Memory capacity	1,000 measurements
Accessories	cone 2cm² 2pcs., spindle 30cm 1pc., spindle 60cm 1pc.
