Aquaread

BlackBox

WaterSignal Processing

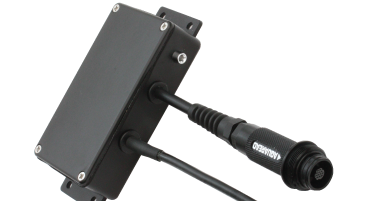

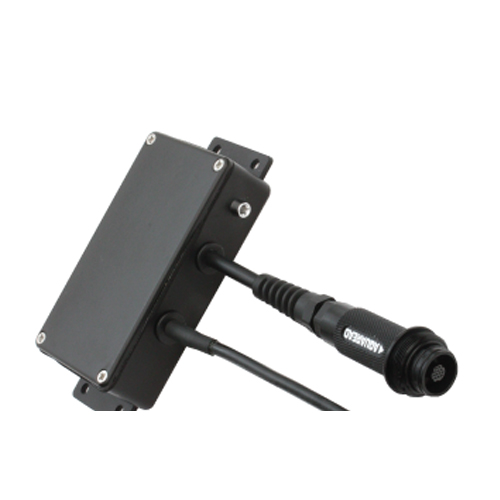

The BlackBox is a data converter that allows any model of Aquaread water quality probe to be interfaced directly to a third party processing, control or logging device. With a choice of industry standard digital interfaces the BlackBox offers a versatile and cost effective data conversion solution.

Quantity

Overview

Compatible with all Aquaprobes and AquaPlus probes
Integral barometric pressure sensor for depth and DO correction
Able to output data from any Aquaread water monitoring sensor; standard, optical or ISE types
SDI-12 Digital interface
Modbus (RS485) Digital Interface
Wide operating voltage range
Rugged construction with strong fixing flange
LED status indicator
IP67 rated
Suitable for long term unmanned deployment

Specification

Input Voltage	10 - 14 VDC
Input Current (Awake)	40mA (AP-Lite/AquaPlus/AP-700 - AP-2000) 100mA (AP-5000 or AP-7000) 500mA (AP-7000 during self cleaning cycle)
Input Current (Asleep)	<100uA (includes current drawn by attached probe)
Protection Class	IP67
Dimensions	140 x 65 x 30 mm
Weight	400g
Connections	Probe socket on flying lead & 1M screened power/data cable
Fixing	Aluminium flange with four 5mm mounting holes
Digital Interface	User selectable between SDI-12 & Modbus (RS485)
Update Rate	All data is refreshed every 2 seconds

Downloads

BlackBox Data Sheet	DownloadBlackBox Data Sheet
