IMKO

IMKO globeLog

ClimateData Logger (Environment)

Your globeLog has been built and designed with the basic principles of reliability and stability in mind

Quantity

1

Overview

IMKO globeLog the new generation of data loggers
Up to 48 TRIME®-probes and other IMKO sensor modules are connectable
2 MByte data storage capacity
Data transfer via cellular radio
Internet data visualisation
Robust, lightweight, weatherproof (IP67)
Easy programming
Ultra Low Power

Specification

Power supply:

external	- 10..24V/DC (12V recommended)
Power consumption: Sleep (between the measurements)	approx. 0,1mA
Power consumption: Idle (active, but no measurement)	approx. 10mA
Power consumption: During the measurement	approx. 35mA (only Logger, sensors according to configuration of the system)
Power consumption: During the data communication	30..50mA according to network quality

Temperature:

Logger	from -40 to +60°C
Modem	from -20 to +60°C (sub-limit selectable, lower than -10°C with limited functionality)

On-site data transmission:

Interface	RS232
Required Software	GlobeLogControl
Required Hardware	Windows-PC with Windows2000 or higher

Remote data transmission:

Hardware	Internal Quad-Band GSM-Modem
Data Service	GSM/GPRS
Transfer Protocol	http
Transfering Costs (daily data transmission)	Lower than 1€ (in Germany, country-specific, nevertheless you have to pay only for local connection)
Required Software (for remote maintenance and data storage)	GlobeLogControl
Required Hardware	Windows-PC with Internet access, Windows2000 or higher, data will be transfered via e-mail by the globeLog Logger

Data storage/Data logging:

Storage Type	data memory Flash (non-volatile memory)
Memory Size	2MB
Organisation	Data will be recorded until the memory is full. Further accumulating data will be lost
Measuring interval	1min..12h
Number of measured data	>250.000
Erasing of measured data	on-site or via remote data transmission DFÜ (optional)

Input channels:

IMP-Bus 1-4	- Up to 48 channels (Sensors can be up to 3- channels)
IMP-Bus 1-3	For Sensors with switched supply voltage (is switched of between the measurements)
IMP-Bus 4	For Sensors with permanent voltage
Housekeeping channels	- 1x internal temperature - 1x supply voltage - 1x voltage of back-up battery

Downloads

doc_2420_181004023815	Downloaddoc_2420_181004023815

Related Products

WatchDog 1000 Series Micro Stations - External Sensors Only

Spectrum Technologies

WatchDog 1000 Series Micro Stations - External Sensors Only

These WatchDog 1000 Series Micro Stations measures external sensors ONLY, does not measure any internal sensors.

WatchDog 3250 Wireless ET Station

Spectrum Technologies

WatchDog 3250 Wireless ET Station

The WatchDog 3250 Wireless ET Station measures temperature, relative humidity, rainfall, solar radiation, and wind speed & direction.

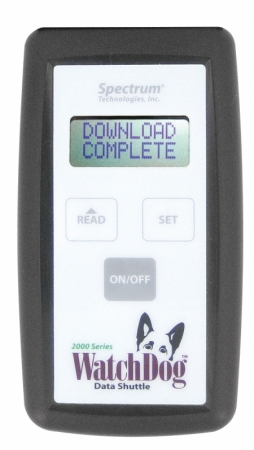

Spectrum WatchDog 1000/2000 Series Data Shuttle
