Manifold For 1500 F1 Extractor, 15 Bar Max. (Compressor)

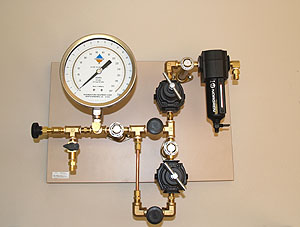

The 0700G2 Pressure Control Manifold is designed for regulating and monitoring the pressure supplied to the 1500F2, 15 Bar Pressure Plate Extractor. It is comprised of an air filter, pressure regulators, control valves, and test gauges. Mounted by standoffs to a 3/4in (19 mm) thick baseboard suitable for mounting on a laboratory wall. (The Connecting Hose, 0779G1, from the manifold to the compressor is ordered separately).Output pressure can be regulated from 10 to 250 psi (0.7 to 16 bars). Double regulation is provided in the 5 to 150 psi (0.3 to 10 bars) range. Readout pressure test gauge is graduated from 0 to 300 psi (0 to 20 bars), in 2 psi and 0.1 bar intervals.
