Manifold For 1600 Extractor, 5 Bar Max. (Compressor)

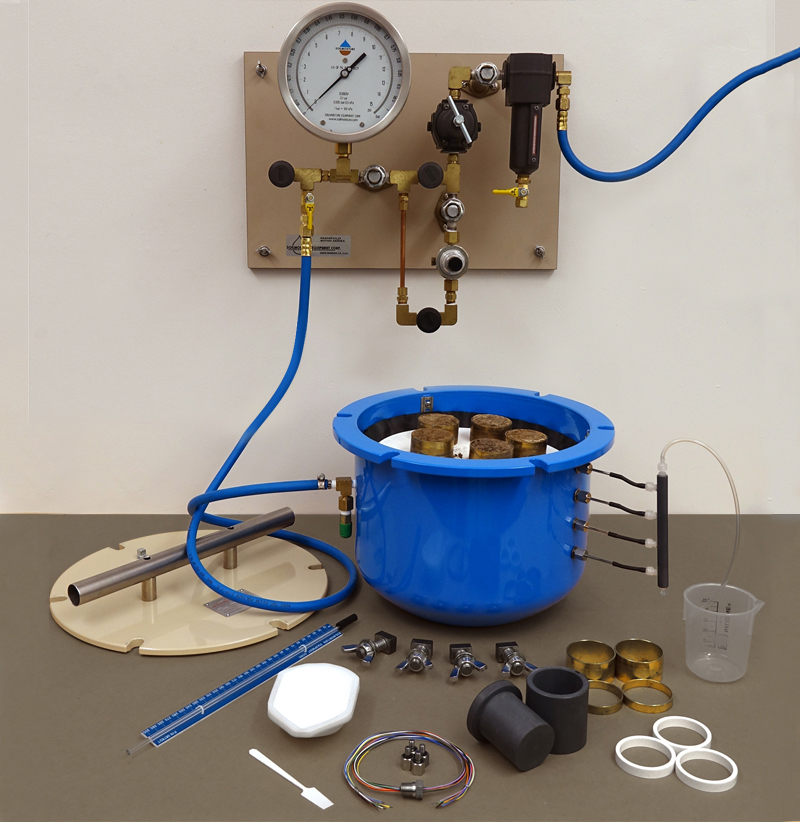

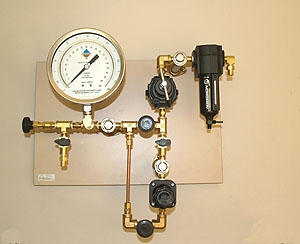

Soil Moisture Manifold For 1600 Extractor, 5 Bar Max. (Compressor) designed for regulating and monitoring the pressure supplied to pressure extractors. Comprised of an air filter, pressure regulators, control valves, and test gauges. Mounted by standoffs to a 3/4" (19 mm) thick baseboard suitable for mounting on a laboratory wall. Precise low-pressure control manifold designed for use with the Bar Pressure Plate Extractor. Output pressure can be regulated from 3 to 60 psi (0.2 to 4 bars). Double regulation is provided. Readout pressure test gauge is graduated from 0 to 60 psi (0 to 4 bars) in 0.2 psi and 0.02 bar intervals.
