NRT LCD Display Units & Field Termination Strips Models 2504E, 2103F

ClimateData Logger (Environment)

The 2504 NRT HSIO LCD Display interfaces with all Neon remote terminals and modules. It displays the values obtained from the most recent scan. The Neon’s scheme defines which parameters will be displayed.

Quantity

Overview

For example, one of the supplied schemes displays battery supply voltage, analogue and counter channel values or SDI 12 channel values.
2504 is packaged in a compact weatherproof polycarbonate enclosure.
The display module power supply can be wired to a user-installed switch so that it can be switched on only when necessary.
The module display is refreshed every scan (normally 15 seconds) and will display a text message when power is applied until a message from the instrument is received.
Pressing the button on the front panel resets the display.

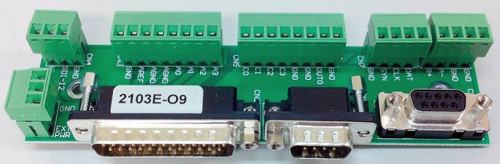

A field termination strip extends a data logger’s input signal connections to rows of numbered screw terminals, simplifying on-site installation of a data logging system, particularly for complex applications.
The 2103 Field Termination Strip is used with Neon remote terminals 2016F, 2018F and 2022F and allows for easy connection of the field sensors to Neon loggers.
The Neon data logger accepts many different kinds of signal. The field termination strip offers terminals for each input and output e.g. analog, SDI-12, Modbus.
In addition, using links on the field termination strip, most terminals can be customised offering an even wider range of possible inputs and outputs.
Standard 2103 FTS can be configured to provide a field sensor with 5V or 9V power supply.

Specification

Material	ABS IP65 Sealed Enclosure
Size	115mm x 70mm x 83mm (LxWxH)
Weight	270 grams
Operating temperature	0°C to 50°C. Not affected by humidity
Display Format	Four lines x 16 Characters
LCD Type	Supertwist (STN), yellow-green with backlight
Optimum Viewing	6 o’clock
Power Supply	8 to 18VDC @ 20mA
Serial Signal	HSIO Standard Synchronous Protocol
Serial Protocol	ASCII text special commands for formatting
