OSTARA Monitoring Station
ClimateAir Quality
Dedicated to outdoor & harsh environments

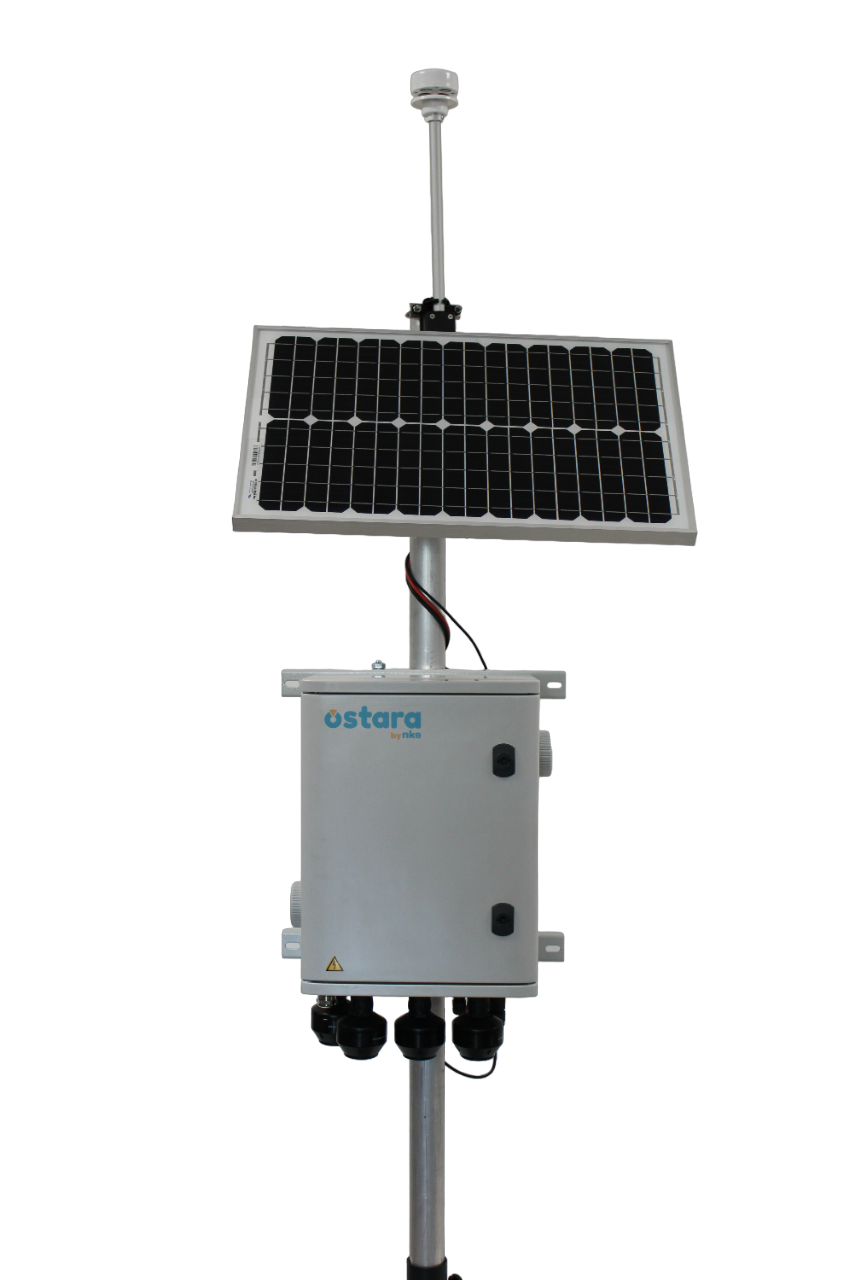

Installed on-site, your Ostara station, equipped with its seven sensors, operates autonomously and measures the main pollutants found in the air
Quantity
1
Features
Specifications
PhysicalFeatures |
Mechanical Features |
Transmission |
Temperature |
Power Supply |
|---|---|---|---|---|
| Dimensions W.300 x D.210 x H.485mm |
Fiberglass-reinforced polyester | FTP/SMTP 2G/3G/4G LTE communication |
Operating temperature -20°C / +55°C (-4°F / 131°F) |
Autonomous solution PV + fixing support + lead battery |
| Waterproof rating IP66 |
Class II insulation | |||
| Impact resistance IK10 |

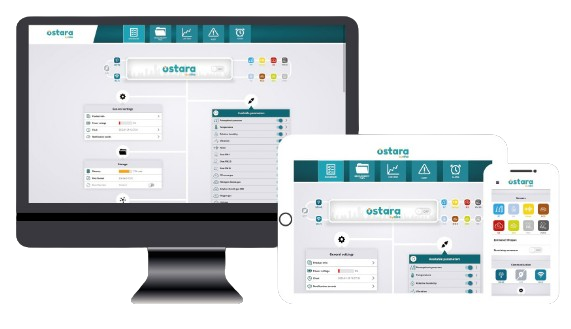

Corrosion resistant | Local access: Wi-Fi Embedded web interface for setting parameters and viewing data |
Storage temperature 0°C / +40°C (32°F / 104°F) |
External power supply solution 230VAC + lead battery |
| Weight 5kg (without battery) 9kg (with battery) |
Wall or pole fixing |
Sensor Range
Integrated Parameter |
Range |
Accuracy |
Resolution |
| Temperature | -20° to +55°C (-4°F to 131°F) |
±0,1°C | 0,01°C |
| Relative humidity | 0 - 100% RH | ±1,5% RH | 0,01% RH |
| Atmospheric pressure | 300 / 1100mbar | 0,1mbar @25°C | 0,1mbar |
| PM sensor | PM1 / PM2.5 / PM10 0-1000µg/m³ |
<5% 3-point calibration |
0,001 µg/m³ |
| GNSS | Lat./long./alt. | < 4m (CEP-50) | 0.000001° |
External Sensor |
Range |
Accuracy |
Resolution |
| Ultrasonic anemometer | 0.12-40 m/s 0 - 359° |
0.12m/s ±1° |
0.1 m/s 1° |
| WiMo (Multiparameter sonde) | Sonde measuring Physico-chemical water parameters (temperature, pressure, conductivity, turbidity, pH, etc.). Remote transmission via RS485 Modbus cable | ||
Gases (*) |
Standard Range |
Standard Range |
Compensation |
Estimated Lifetime |
| Carbon monoxide | 10 ppm (0.001 ppm) | 11 mg/m³ | Temperature | 3 years |
| Hydrogen sulfide | 10 ppm (0.1 ppm) | 7 mg/m³ of the | Temperature | 3 years |
| Ammonia | 100 ppm (0.1 ppm) | 69 mg/m³ | Temperature | 2 years |
| Nitrogen dioxide | 5 ppm (0.01 ppm) | 9 mg/m³ | Temperature | 3 years |
| Oxygen | 25 % (0.01 %) | n/a | Temperature | 2 years |
| Ozone | 5 ppm (0.001 ppm) | 9 mg/m³ | Temperature | 3 years |
| Sulfur dioxide | 50 ppm (0.001 ppm) | 130 mg/m³ | Temperature | 3 years |
| Volatile organic compounds (VOCs) | 10 ppm (0.01 ppm) | n/a | Temperature | 3 years |
| Odours | 10 ppm (0.1 ppm) | n/a | Temperature | 3 years |
(*) Additional gases available on request (CH4S, HCHO, HCN, H2, PH3, Br2, ClO2, Cl2, F2, HCl, HF)
CALCULATED PARAMETERS |
MEANING |
RANGE |
| Dew point | Condensation on surfaces with a temperature below the dew point | 0 < Tr < 50°C |
| Freezing point | Formation of ice crystals on surfaces with a temperature below the freezing point | T < 0°C |
| Windchill | Human body wind chill index | T air <10°C Wind > 1m/s |
| Humidex | Human body heat sensation index | <5% |
| Air quality index | Daily air quality index based on least favorable parameter (France) | O3, SO2, NO2, PM10, PM2.5 |
| AQI Index | Hourly air quality index (Europe) | O3, SO2, NO2, PM10, PM2.5 |
