Eijkelkamp
Penetrologger PRO

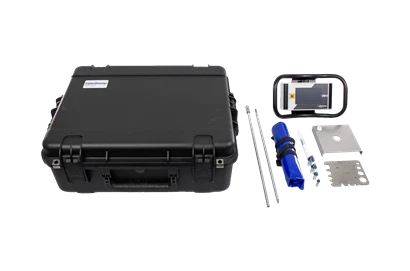

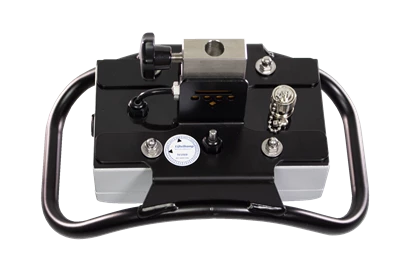

The Penetrologger PRO is a robust and precise instrument for measuring soil penetration resistance in the upper 80 cm of the soil profile.
- Precise and fast internal GPS
- Touchscreen designed for demanding field conditions
- Rechargeable battery: up to 48h of operation
- Visual and audio penetration speed feedback
- Quick-switch between measuring units
- Wi-Fi ready
Overview
The Penetrologger PRO is lightweight and easy to use. Its housing has an ergonomic design with a protection rate of IP54. The 5 inch high quality colour LCD screen can be operated with gloves and is readable in demanding outside conditions.
The Penetrologger PRO supports Cone Index (CI) measurements.
Key features
- Digital data logging with GPS location
- Optional soil moisture sensor
- Measurement in megapascals (MPa), Newtons (N), PSI, and California Bearing Ratio (CBR)*
- Durable, maintenance-free design for field reliability
- Seamless data integration into existing workflows using the PenetroPROviewer application
Downloads
| brochure-penetrologger-pro_en_09-25 | Downloadbrochure-penetrologger-pro_en_09-25 |
|---|
