Basic Winch SEWII

WaterFlow & Velocity Measurement & Monitoring

Portable mechanical winch for mobile flow measurement with hydrological impellors (e.g. SEBA water wings F1)

Quantity

Overview

Mobile:
The compact design and relatively light weight of SEWII (12 kg) permits independent flow measurement of stationary cable crane systems with impellors and a load of 5 kg to a maximum of 100 kg. As a standard, SEWII can be operated mechanically and therefore independently of the mains.

Variable:

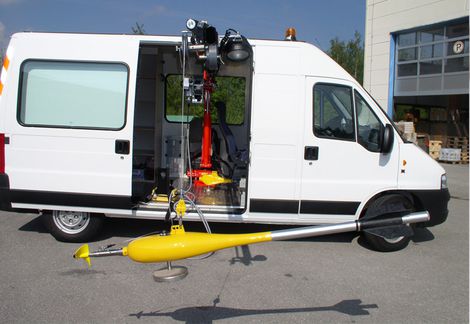

The SEWII can easily be adapted both to a mobile bridge cantilever or installed in measuring trailers or measuring vehicles with swiveling telescopic arms. For maximum ease of use, the following are available: a high-performance 24 V motor for load weights up to 100 kg and an operating terminal with joystick control and an integrated counting device (option).

Tailor-made:
With the SEWII we offer mobile solutions from a single source, i.e. from a simple bridge cantilever to completely configured, fully equipped test vehicles (e.g. Mercedes Benz Sprinter).

Specification

Wind Framework

Material	Aluminium
Dimensions	370x276x130mm

Cable Drum

Material	Cast aluminium
Dimensions	Ø175 mm maximum
Capacity	80m steel wire rope

Measuring Cable

Material	Galvanized steel wire rope with an insulated copper strand
Dimensions	Ø3.25 mm
Connection	T and angle plug with a thimble for load weight

Others

Safety Crank	Load pressure brake and foldable reel handle
Roller Counter	4 digits, for depth indication in m and cm
Capacity	50kg Standard, 100kg, option (type SEWII-100)
Total Weight	12kg (with 25m measuring cable)
