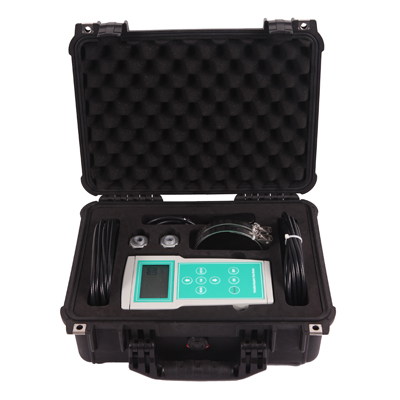

DF6100-EH Doppler Handheld Ultrasonic Flow Meter

WaterFlow & Volocity Measurement & Monitoring

DF6100-EH Series Doppler Handheld Ultrasonic Flow Meter is designed to measure volumetric flow of within closed conduit, the pipe line must be full of liquids, and there must be a certain amount of air bubbles or suspended solids in liquid. The Doppler ultrasonic flow meter can display flow rate and flow totalizer, etc., and is configured with 4-20mA, Relays for Totalizer and Alarm outputs

Quantity

Overview

Features：

It is suitable for pipe sizes ranging from 40 to 4000mm
For dirty liquids, a certain amount of air bubbles or suspended solids shall be contained
Excellent low flow rate measurement ability, low to 0.05m/s
A wide range of flow measurement, high flow rate can reach 12m/s
High-temperature transducer is suitable to liquids of -35℃ ~ 200℃
Do not need to shut down the pipe flow when installing the transducers
User-friendly configuration
4-20mA, Relay Totalizer and Relay Alarm outputs
Accuracy: 2.0% Calibrated span
Rechargeable battery can work up to 14 hours

Specification

Transmitter

Measurement Principle	Doppler ultrasonic
Resolution	0.50 mm/s
Repeatability	0.2% of reading
Accuracy	0.5% -- 2.0% F.S
Response Time	2-60s for optional
Flow Velocity Range	0.05- 12 m/s
Liquid Types Supported	Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 micron
Power Supply	AC: 85-265V
Enclosure Type	Handheld
Degree of Protection	IP65 according to EN60529
Operating Temperature	-20℃ to +60℃
Housing Material	ABS
Measurement Channels	1
Display	2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable)
Units	User Configured (English and Metric)
Rate	Rate and Velocity Display
Totalized	gallons, ft³, barrels, lbs, liters, m³,kg
Communication	4-20mA,relays for Totalizer and alarm output
Keypad	6pcs buttons
Size	Transmitter: 235X125X45mm Case: 410X320X80mm
Weight	0.6kg

Transducer

Transducer Type	Clamp-on
Degree of Protection	IP65. IP67 or IP68 according to EN60529
Suited Liquid Temperature	Std. Temp.: -35℃~85℃ for short periods up to 120℃ High Temp.: -35℃~200℃ for short periods up to 250℃
Pipe Diameter Range	40-4000 mm
Transducer Size	60(h)34(w)33(d)mm
Material	Aluminum for standard temp. sensor, peek for high temp. sensor
Cable Length	Std: 5m

DF6100-EH Doppler Handheld Ultrasonic Flow Meter

Overview

Specification

Transmitter

Transducer
