Xylem Water

Flow Probe - FP111, FP211, FP311

WaterFlow & Velocity Measurement & Monitoring

The Global Water Flow Probe is a highly accurate water velocity instrument for measuring flows in open channels and partially filled pipes.

Quantity

Overview

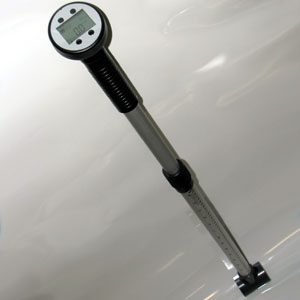

The water velocity probe consists of a protected water turbo prop positive displacement sensor coupled with an expandable probe handle ending in a digital readout display. The water flow meter incorporates true velocity averaging for the most accurate flow measurements. The Flow Probe is ideal for storm water runoff studies, sewer flow measurements, measuring flows in rivers and streams, and monitoring water velocity in ditches and canals.

Features:

Digital display in ft/sec or m/sec
Records 30 data sets for later analysis
Rain-proof digital computer
Highly accurate easy flow monitoring
Debris shedding turbo-prop
Lightweight, rugged, and reliable
Telescoping handle with staff gauge
Padded carrying case for easy storage
CE Certified
Used by water professionals worldwide since 1990
Ideal for measuring flows in streams, rivers, canals, stormwater, wastewater, inflow and infiltration studies, and industrial process waters

Specification

Range	0.3-19.9 FPS (0.1-6.1 MPS)
Accuracy	0.1 FPS
Averaging	True digital running average. Updated once per second.
Display	LCD, Glare and UV Protected
Control	4 button
Datalogger	30 sets, MIN, MAX, and AVG
Features	Timer, Low battery warning
Sensor Type	Protected Turbo-Prop propeller with magnetic pickup
Expandable Length	3.7 to 6 ft (1.1 to 1.8 m) (FP111); 5.5 to 15 ft (1.7 to 4.6 m) (FP211); 2.5 to 5.5 ft (0.76 to 1.7 m) (FP311)
Probe Material	PVC and anodized aluminum with stainless steel water bearing
Computer Material	ABS/Polycarbonate housing with polyester overlay
Power	Internal Lithium Battery, Approx 5 year life with typical use, Non-Replaceable
Auto Shutoff	After 5 minutes of inactivity
Operating Temperature	-4° to 158° F (-20° to 70° C)
Storage Temperature	-22° to 176° F (-30° to 80° C)
Carrying Case	The Flow Probe is shipped in a padded carrying case
Approvals	CE
