FlowSens

WaterFlow & Velocity Measurement & Monitoring

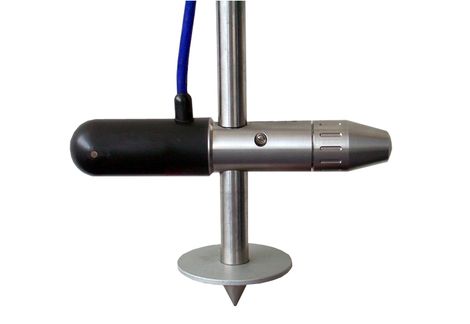

Portable measuring instrument with a magnetic inductive flow sensor for mobile flow measurement on a Ø 20mm wing rod

Quantity

Overview

Variable:

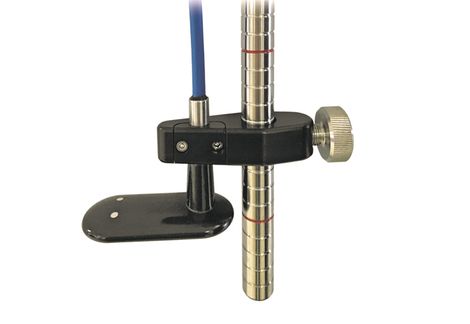

The FlowSens is a universal device for mobile flow measurement. Thanks to the electromagnetic measurement principle, FlowSens can be used where hydrological measuring vanes or Doppler measurement systems reach their limits, for example, at low flow rates, in heavily weedy waters and watercourses with low suspended matter content. Even under extreme operating conditions, FlowSens provides excellent measurement results. Changes in conductivity have no influence on the measurement. Ideal for measurements at very low water depths from 5 cm, a special flat sensor head (FlowFlat) is available.

User-friendly:

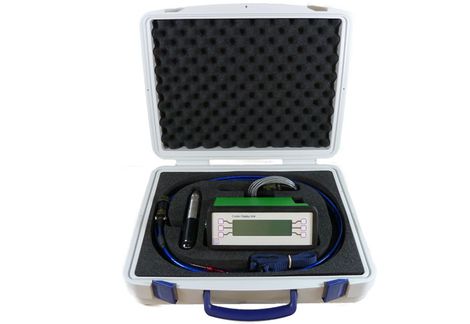

The compact control unit with large, illuminated LCD and a 6-key operation pad allows for both rapid and convenient programming and a very good legibility of the current flow rate, the mean values and the standard deviation.

Specification

Sensor

Measurement Principle	Magnetic inductive
Measuring Range	-5 up to + 5m/s
Measuring Accuracy	±0,5% + 0 point + 5mm/s
0-point Drift	<0,5mm/s

Housing

Material	V4A, 1.4305, PU
Min. Depth	FlowSens 15 cm / FlowFlat 5 cm
Sensing Volume	FlowSens approx. 12cm around sensor FlowFlat Cylinder (10mm high) Ø20mm
Protection Class	IP68
Fastening	Locking screw (adaptable to 20mm wing bar)
Operating Temperature	-5°C - + 40°C

Measurement Transducer Housing

Material	Injection moulding ABS
Dimensions	144mm x 163mm x 94mm
Protection Class	IP67
Keyboard	Membrane keypad with 6 keys
Display	LC display with backlight (switchable)

Communications

Interface	RS232
Power Supply	8 x alkaline manganese batteries (replaceable) for about 37 hours in measuring mode
Connection	MIL-STD socket for the sensor cable
Operating Temperature	-5°C - + 50°C
