HCCK

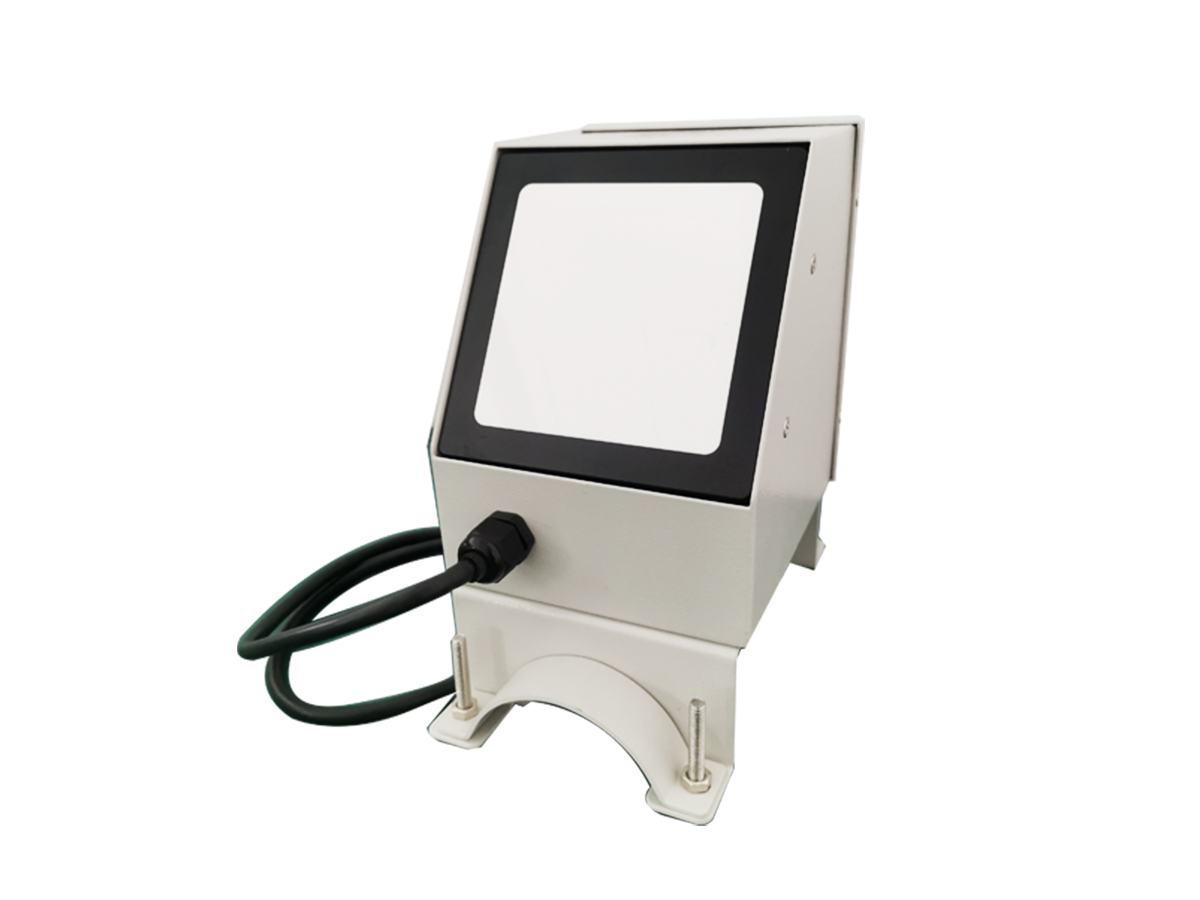

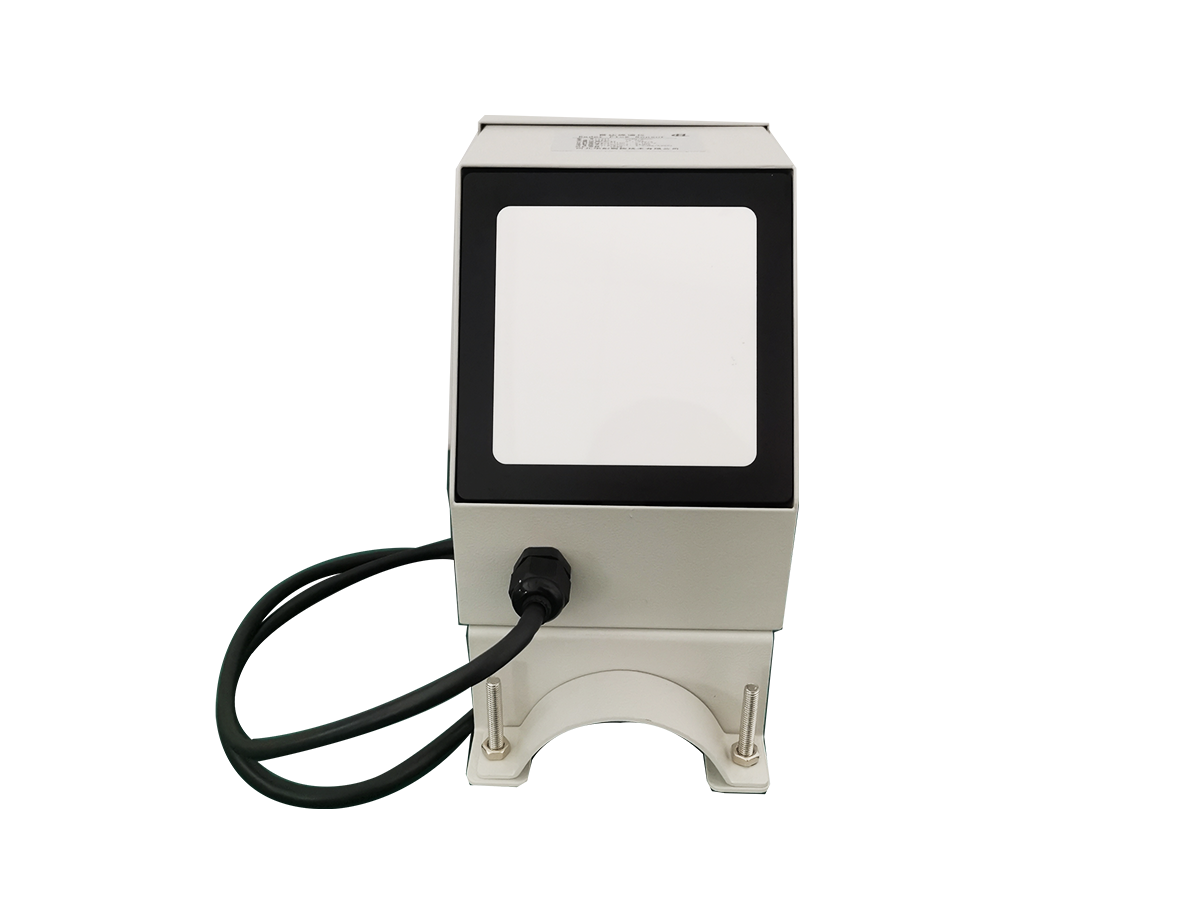

HCSM-6000

WaterFlow & Velocity Measurement & Monitoring
HCSM-600 radar flow sensor is a kind of radar which applies the Doppler Effect to detect the position of moving objects and relative moving speed. It uses the multi-point , multi-layer flow rate analyzer which is developed by the modern advanced signal processing technology.
Quantity
1

Overview

  1. Non-contact detection by planar microwave radar, not affected by climate, sediment and floating objects.
  2. Fast and accurate measurement, stable data output, and suitable for high velocity environment in flood period.
  3. Anti-condensation, waterproof, lightning protection design, suitable for  various of outdoor environments.

Specification

Application River, Hydrology, Water Conservancy
Measuring Range 0.1-25m/s
Connection Distance 0.3-30m
Resolution 0.1mm/s
Accuracy ≤2%
Transmitting Frequency 24GHz (K Band)
Communication Interface RS-232/RS-485
Power Supply 12V
Machine Power Consumption 1.75W

Related Products

FX100 High-precision Non-contact Open Channel Flow Meter

Geolux

FX100 High-precision Non-contact Open Channel Flow Meter

The Geolux FX100 is an integrated instrument utilizing advanced FMCW 4D surface velocity radar and FMCW water level radar meter.

Learn More
Z6 Counting Device

SEBA Hydrometrie

Z6 Counting Device

The compact, fully electronic SEBA Z6 counting device is therefore equipped with an easy-to-read, 5-digit LCD with a large keypad and a shoulder strap.

Learn More
RISONIC Compact

Rittmeyer

RISONIC Compact

RISONIC compact provides highest precision and reliable measurements in a drift-free flow measurement solution.

Learn More

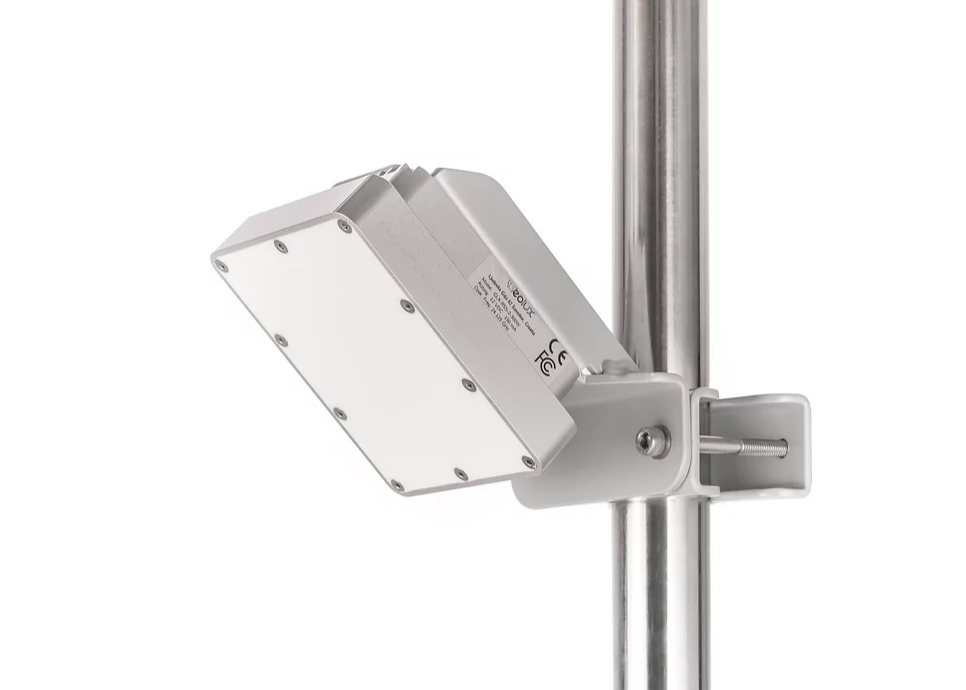

RSS-2-300W Surface Velocity Radar
