HydroStation All-In-One Monitoring

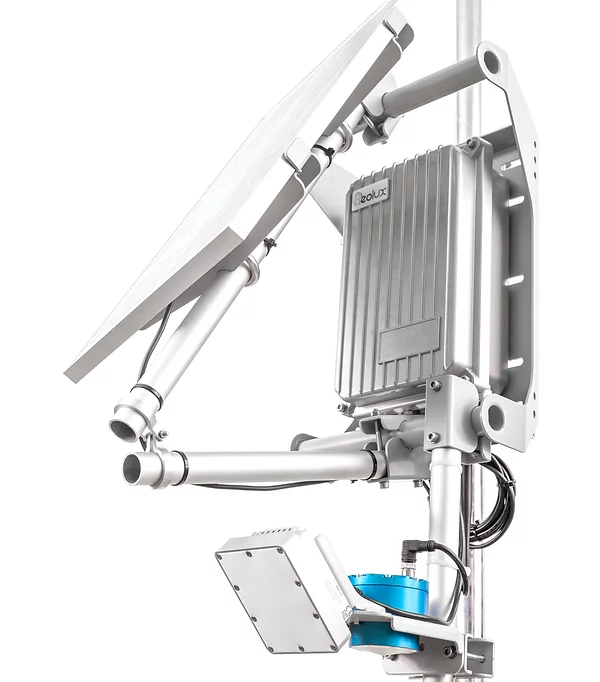

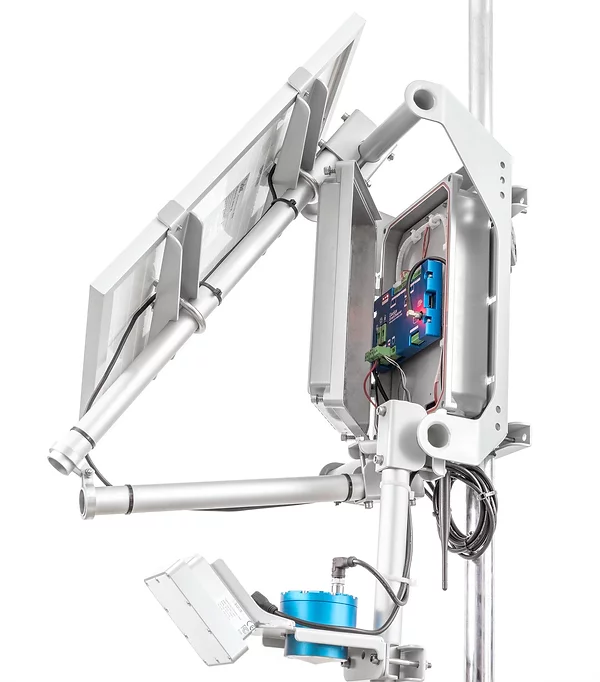

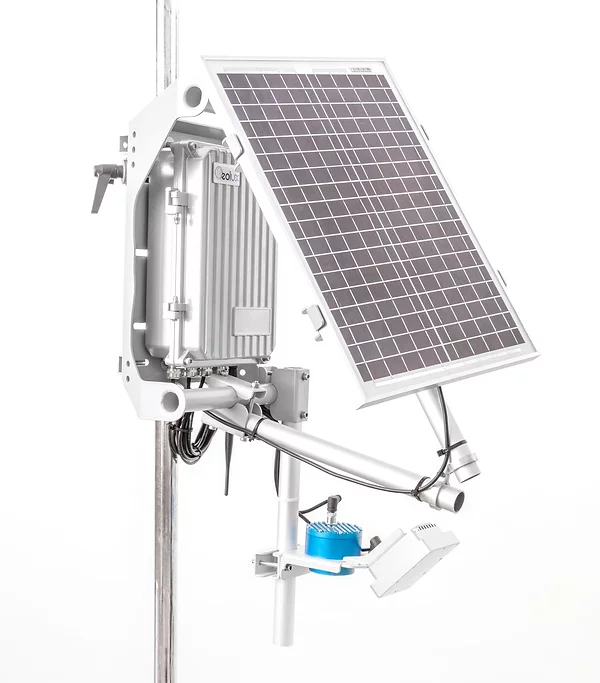

The standard version of HydroStation comes equipped with a 20 W solar panel, a 20 Ah lithium battery, a GPRS-enabled SmartObserver datalogger, a Geolux LX-80-15 radar-based water level sensor and a Geolux RSS-2-300 W surface velocity radar. The battery and datalogger are enclosed in a vandal-proof, watertight IP68-rated aluminum enclosure. The solar panel is attached to a adjustable holder which allows easy orientation of the solar panel during station setup.

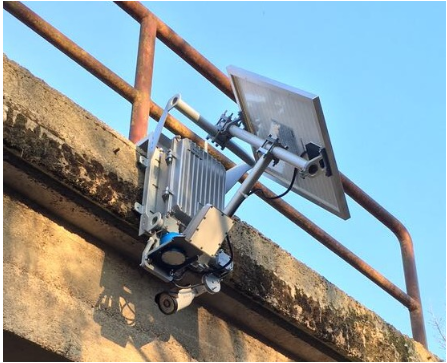

The HydroStation is equipped with mounting brackets that make installation on an existing structure - such as a bridge - straightforward and easy. There is no need to separately install solar panel, instruments, battery and datalogger on site, and to need to install wiring when doing on-site work. Instead, all the instruments and power lines are already connected. This approach reduces the amount of work required to perform on-site, which is convenient when you need to install multiple hydrological stations in limited time.

We also provide customized HydroStations with different hydrological instruments attached, with different solar panel sizes, and with different battery capacity installed. Contact us with your specific requirements, and we will provide a solution that will fit your needs perfectly.
