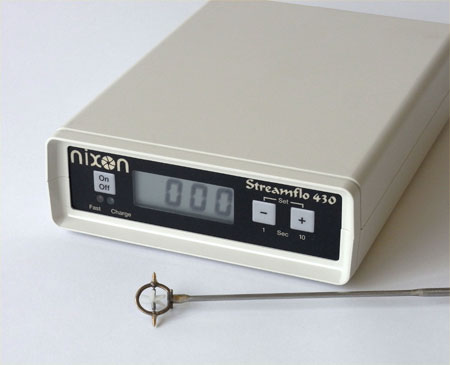

Streamflo Velocity Meter

WaterFlow & Velocity Measurement & Monitoring

The Streamflo series of instruments are used to measure, indicate and record very low velocities of water and other conductive fluids.

Quantity

Overview

Designed primarily for laboratory and specialised industrial use, the miniature head of the flow sensing probe can be inserted into small ducts and channels where it has the ability to measure velocities as low as 5.0 cm/sec. It is thus suitable for measuring accurately the velocities in hydraulic models of river estuaries, dams, harbours, etc., in addition to field measurements of clean water flows.

Specification

Parts & Materials

Rotor	11.6 mm diameter 3D printed and balanced
Spindle	Hardened stainless steel with conical ends
Bearings	Synthetic sapphire vee jewels
Cage	Heavy Chromium plated brass
Stem	Stainless steel
Input Socket	BNC
Weight	0.20kg

Indicator

Indication	Dot matrix LCD display
Controls	On/off and A + B buttons
Input Socket	BNC
Output Socket	3.5 mm Aux Jack
Output	0.5 V DC - 100 MS update rate
Supply	Nickel metal hydride battery or mains power
Weight	540g

Technical Data

Velocity Range	5 to 150 & 60 to 300 cm/sec using two sensing probes
Accuracy	± 1.5% of true velocity
Scaling	Digital indicators scaled in HZ or cm/sec
Operating Temperature	0 to 50°C
Operating Medium	Water or other fluid having similar conductive properties
